SKU: NU2316ECP/C3-SKF

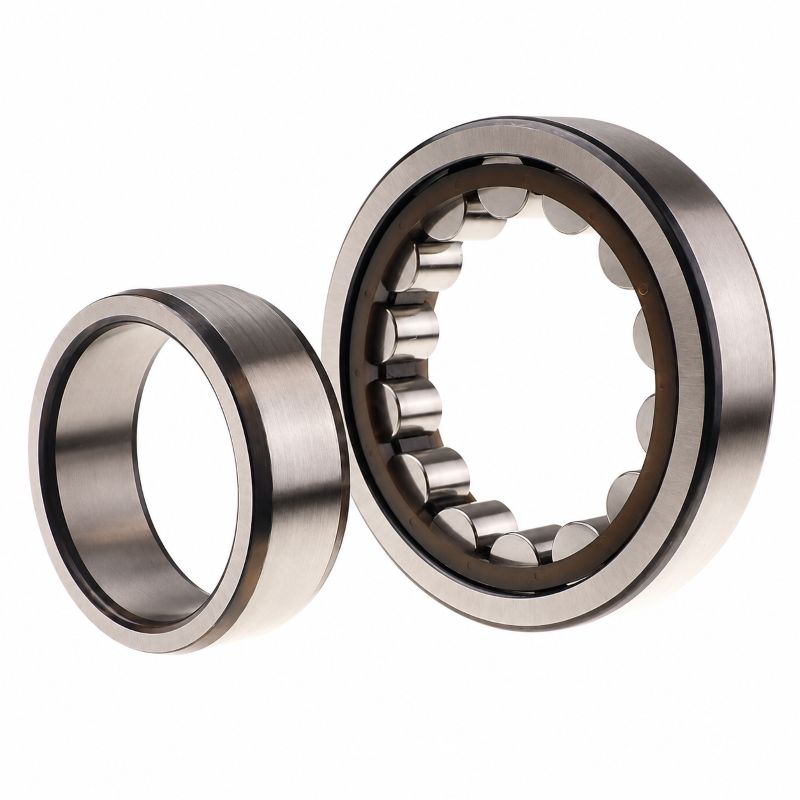

SKF NU2316ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 80x170x58mm
SKF NU2316ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 80x170x58mm
Regular price
CHF 371.00
ex VAT
Regular price
Sale price
CHF 371.00
ex VAT
In stock
Price Break
10+
CHF 294.86
19+
CHF 278.30
29+
CHF 274.98
39+
CHF 271.67
49+
CHF 268.36
74+
CHF 265.05
99+
CHF 248.48
199+
CHF 245.17
249+
CHF 241.85
499+
CHF 238.54
999+
CHF 231.91
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 58mm |
| Dynamic load C | 415 kN |
| Static load Co | 440 kN |
| Fatigue load limit Pu | 55 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 5000 rpm |
| Weight | 5.85 kg |
| Alt cage | M.ML |
| d1 | 110mm |
| D1 | 144mm |
| F,E | 101mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 5.1mm |
| da min | 92mm |
| da max | 98mm |
| db | 104mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
| Angle ring | HJ2316EC |
| Angle ring weight | 0.48 kg |
| B1 | 11mm |
| B2 | 20mm |
