SKU: NU2316ECP-SKF

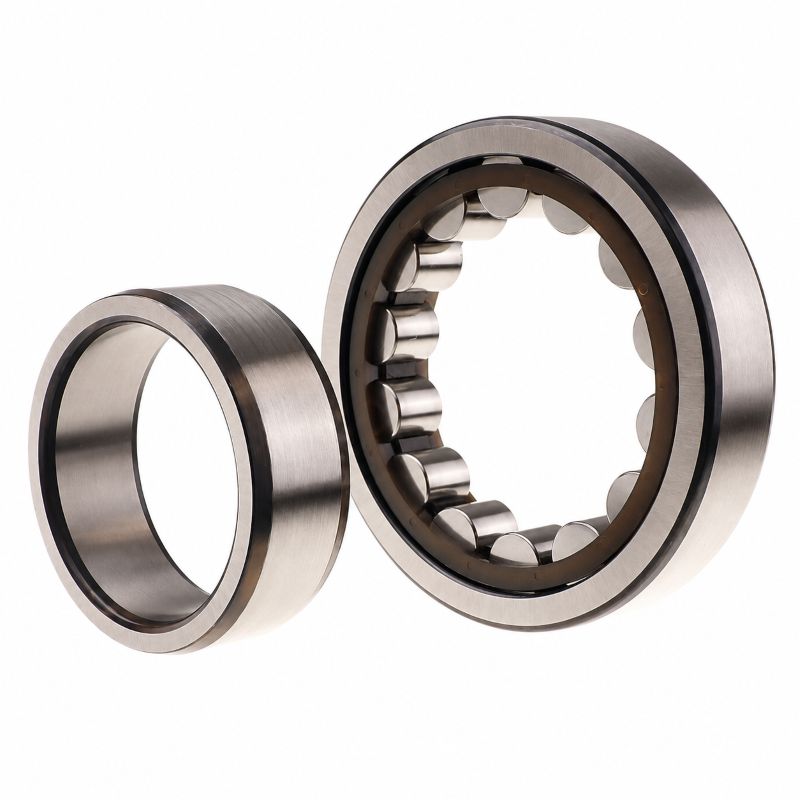

SKF NU2316ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 80x170x58mm
SKF NU2316ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 80x170x58mm
Regular price
CHF 344.00
ex VAT
Regular price
Sale price
CHF 344.00
ex VAT
In stock
Price Break
10+
CHF 273.18
19+
CHF 257.83
29+
CHF 254.77
39+
CHF 251.70
49+
CHF 248.63
74+
CHF 245.56
99+
CHF 230.21
199+
CHF 227.14
249+
CHF 224.07
499+
CHF 221.00
999+
CHF 214.86
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 58mm |
| Dynamic load C | 415 kN |
| Static load Co | 440 kN |
| Fatigue load limit Pu | 55 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 5000 rpm |
| Weight | 5.85 kg |
| Alt cage | M.ML |
| d1 | 110mm |
| D1 | 144mm |
| F,E | 101mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 5.1mm |
| da min | 92mm |
| da max | 98mm |
| db | 104mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
| Angle ring | HJ2316EC |
| Angle Ring Weight | 0.48 kg |
| B1 | 11mm |
| B2 | 20mm |
