SKU: NU309-CDX

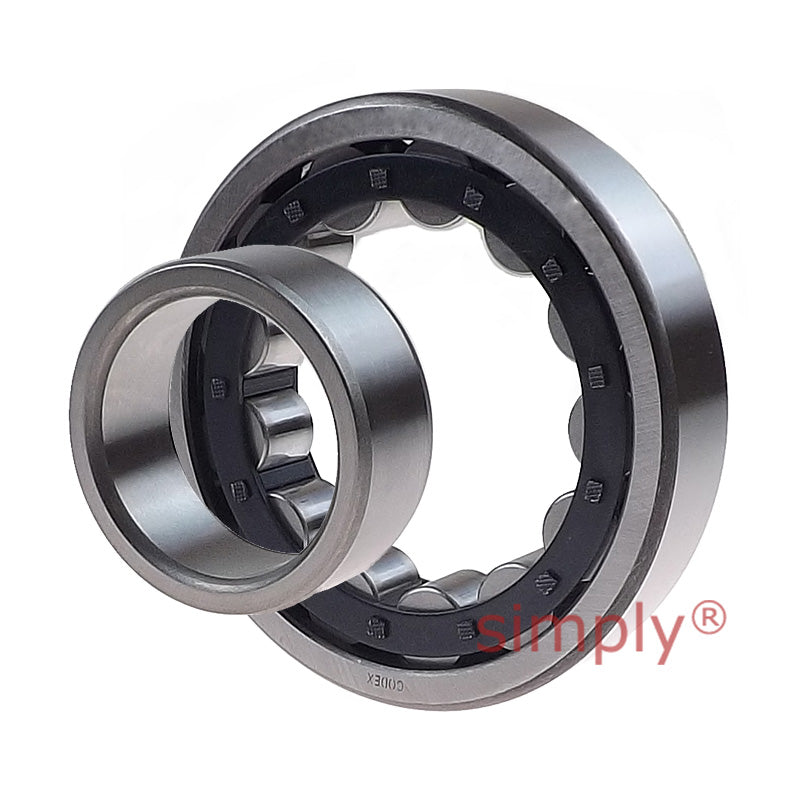

Codex NU309 Single Row Cylindrical Roller Bearing 45x100x25mm
Codex NU309 Single Row Cylindrical Roller Bearing 45x100x25mm
Regular price
CHF 49.00
ex VAT
Regular price
Sale price
CHF 49.00
ex VAT
In stock
Price Break
10+
CHF 38.22
19+
CHF 36.07
29+
CHF 35.64
39+
CHF 35.21
49+
CHF 34.78
74+
CHF 34.35
99+
CHF 32.21
199+
CHF 31.78
249+
CHF 31.35
499+
CHF 30.92
999+
CHF 30.06
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | c112 kN |
| Static load Co | 100 kN |
| Fatigue load limit Pu | 12.9 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.9 kg |
| Cage options | J.M.ML |
| d1 | 64.4mm |
| D1 | 83.8mm |
| F, E | 58.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.7mm |
| da min | 54mm |
| da max | 56mm |
| db min | 61mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ309EC |
| Angle ring weight | 0.11kg |
| B1 | 7mm |
| B2 | 11.5mm |
