SKU: NU310ECJ/C3-SKF

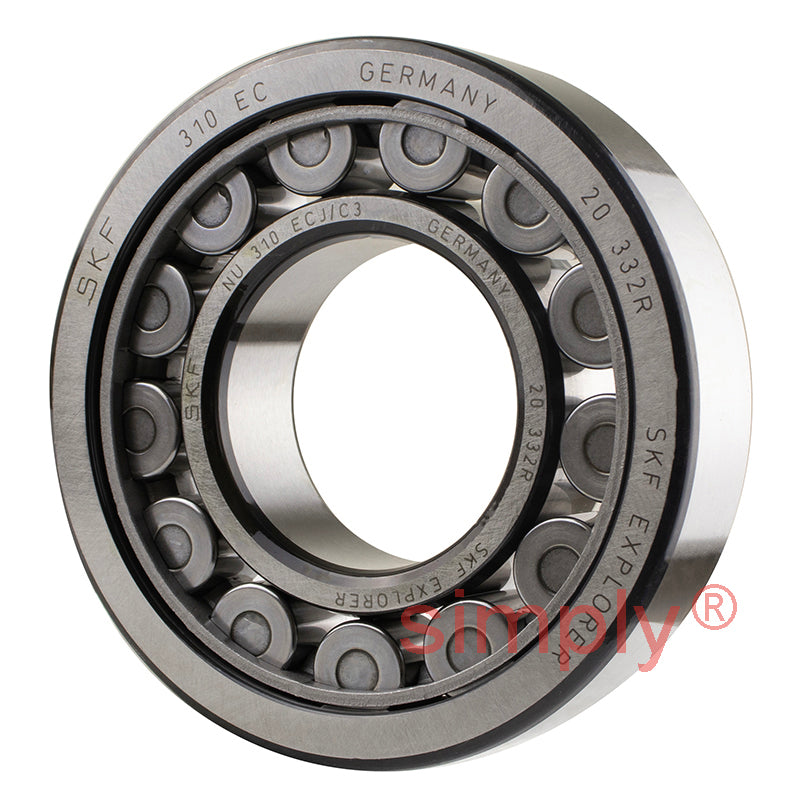

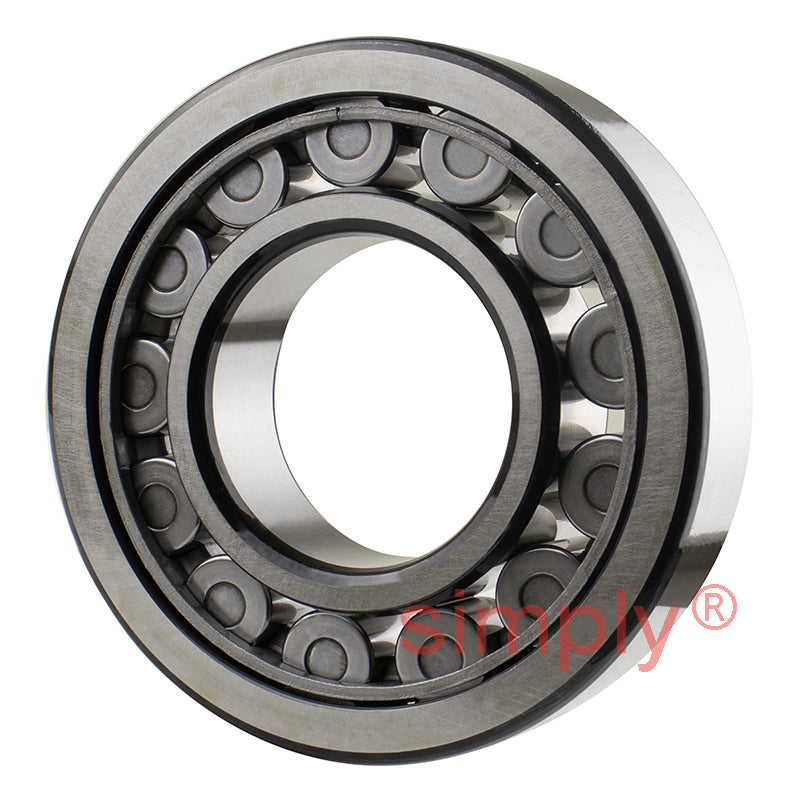

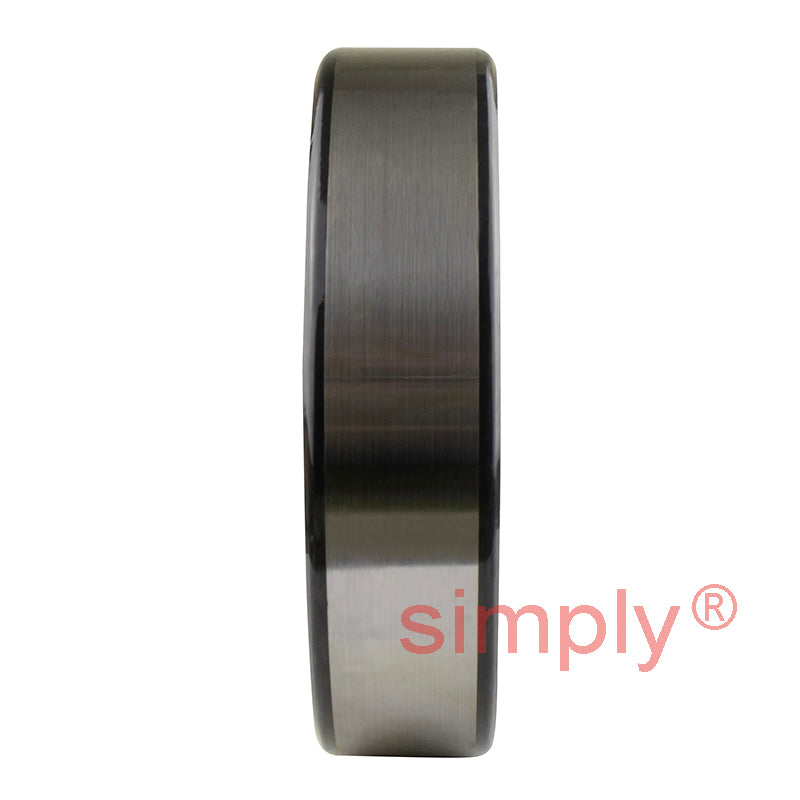

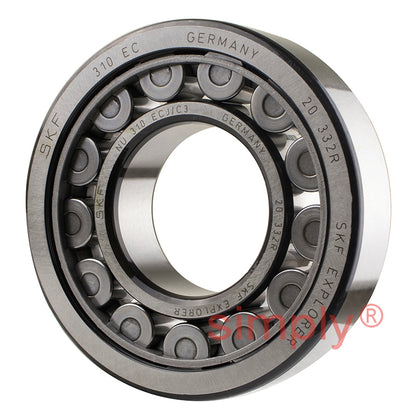

SKF NU310ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 50x110x27mm
SKF NU310ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 50x110x27mm
Regular price
CHF 112.38
ex VAT
Regular price
Sale price
CHF 112.38
ex VAT
In stock
Price Break
10+
CHF 100.02
19+
CHF 94.40
29+
CHF 93.28
39+
CHF 92.15
49+
CHF 91.03
74+
CHF 89.90
99+
CHF 84.29
199+
CHF 83.16
249+
CHF 82.04
499+
CHF 80.91
999+
CHF 78.67
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| D1 | 92.1mm |
| B | 27mm |
| F | 65mm |
| Dynamic load | 127 kN |
| Static load | 112 kN |
| Fatigue load | 15 kN |
| Reference speed | 6700rpm |
| Limiting speed | 8000rpm |
| r1,2min | 2mm |
| r3,4min | 2mm |
| s | 1.9mm |
| Weight | 1.16kg |
