SKU: NU312-CDX

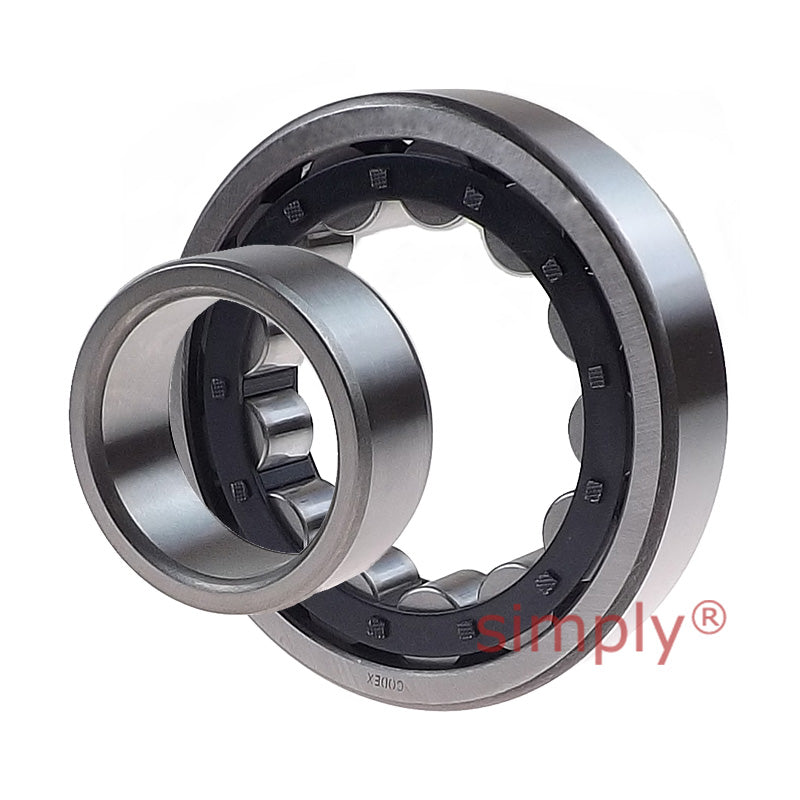

Codex NU312 Single Row Cylindrical Roller Bearing 60x130x31mm
Codex NU312 Single Row Cylindrical Roller Bearing 60x130x31mm
Regular price
CHF 96.02
ex VAT
Regular price
Sale price
CHF 96.02
ex VAT
In stock
Price Break
10+
CHF 85.46
19+
CHF 80.66
29+
CHF 79.70
39+
CHF 78.74
49+
CHF 77.78
74+
CHF 76.82
99+
CHF 72.02
199+
CHF 71.05
249+
CHF 70.09
499+
CHF 69.13
999+
CHF 67.21
Couldn't load pickup availability
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dynamic load C | 173 kN |
| Static load Co | 160 kN |
| Fatigue load limit Pu | 20.8 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.77 kg |
| Cage options | J.M.ML |
| d1 | 84.3mm |
| D1 | 110mm |
| F, E | 77mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2.1mm |
| da min | 72mm |
| da max | 74mm |
| db min | 79mm |
| Da max | 118mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ312EC |
| Angle ring weight | 0.22kg |
| B1 | 9mm |
| B2 | 14.5mm |
