SKU: NU312ECJ-SKF

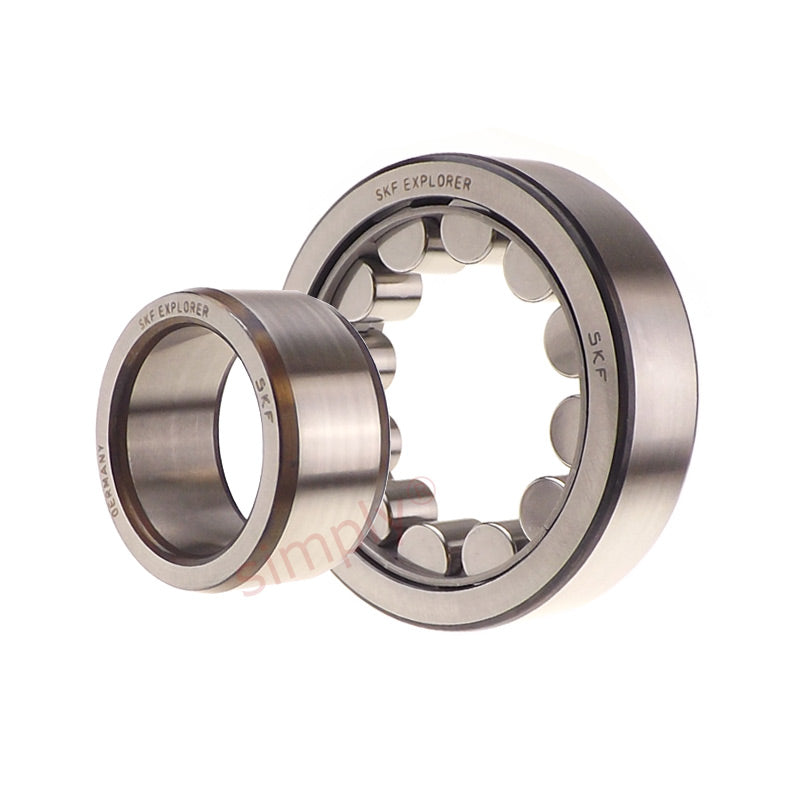

SKF NU312ECJ Steel Cage Single Row Cylindrical Roller Bearing 60x130x31mm
SKF NU312ECJ Steel Cage Single Row Cylindrical Roller Bearing 60x130x31mm
Regular price
CHF 144.00
ex VAT
Regular price
Sale price
CHF 144.00
ex VAT
In stock
Price Break
10+
CHF 113.99
19+
CHF 107.58
29+
CHF 106.30
39+
CHF 105.02
49+
CHF 103.74
74+
CHF 102.46
99+
CHF 96.05
199+
CHF 94.77
249+
CHF 93.49
499+
CHF 92.21
999+
CHF 89.65
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| D1 | 110mm |
| B | 31mm |
| F | 77mm |
| Dynamic load | 173 kN |
| Static load | 160 kN |
| Fatigue load | 20.8 kN |
| Reference speed | 5600rpm |
| Limiting speed | 6700rpm |
| r1,2min | 2.1mm |
| r3,4min | 2.1mm |
| s | 2.1mm |
| Weight | 1.8kg |
