SKU: NU313-CDX

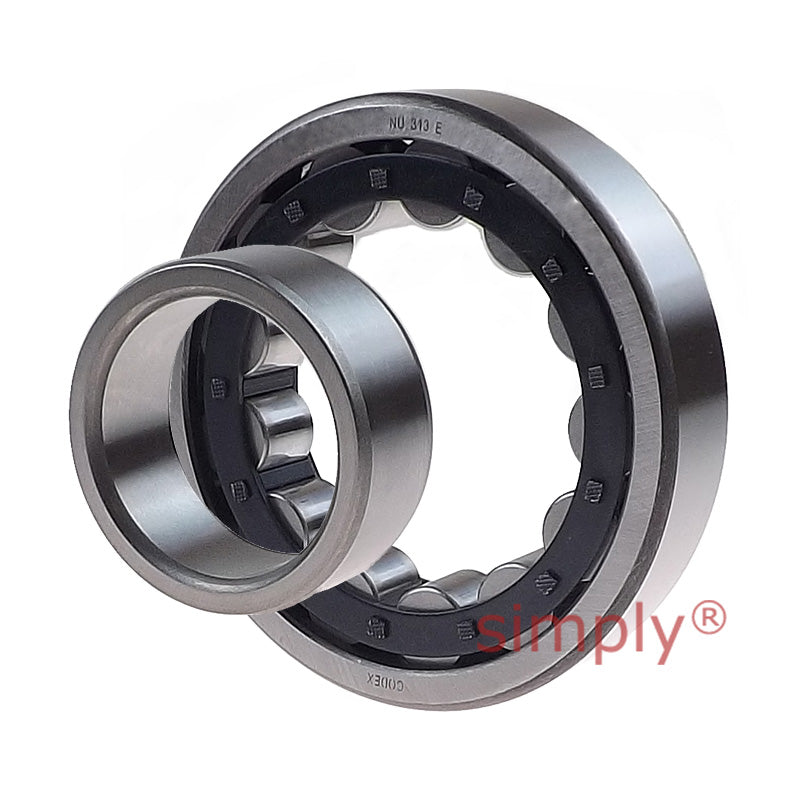

Codex NU313 Single Row Cylindrical Roller Bearing 65x140x33mm
Codex NU313 Single Row Cylindrical Roller Bearing 65x140x33mm
Regular price
CHF 112.00
ex VAT
Regular price
Sale price
CHF 112.00
ex VAT
In stock
Price Break
10+
CHF 88.92
19+
CHF 83.92
29+
CHF 82.92
39+
CHF 81.92
49+
CHF 80.92
74+
CHF 79.93
99+
CHF 74.93
199+
CHF 73.93
249+
CHF 72.93
499+
CHF 71.93
999+
CHF 69.93
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 212 kN |
| Static load Co | 196 kN |
| Fatigue load limit Pu | 25.5 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 6000 rpm |
| Weight | 2.2 kg |
| Cage options | J.M.ML |
| d1 | 90.5mm |
| D1 | 119mm |
| F, E | 82.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2.2mm |
| da min | 77mm |
| da max | 80mm |
| db min | 85mm |
| Da max | 128mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ313EC |
| Angle ring weight | 0.27kg |
| B1 | 10mm |
| B2 | 15.5mm |
