SKU: NU314-CDX

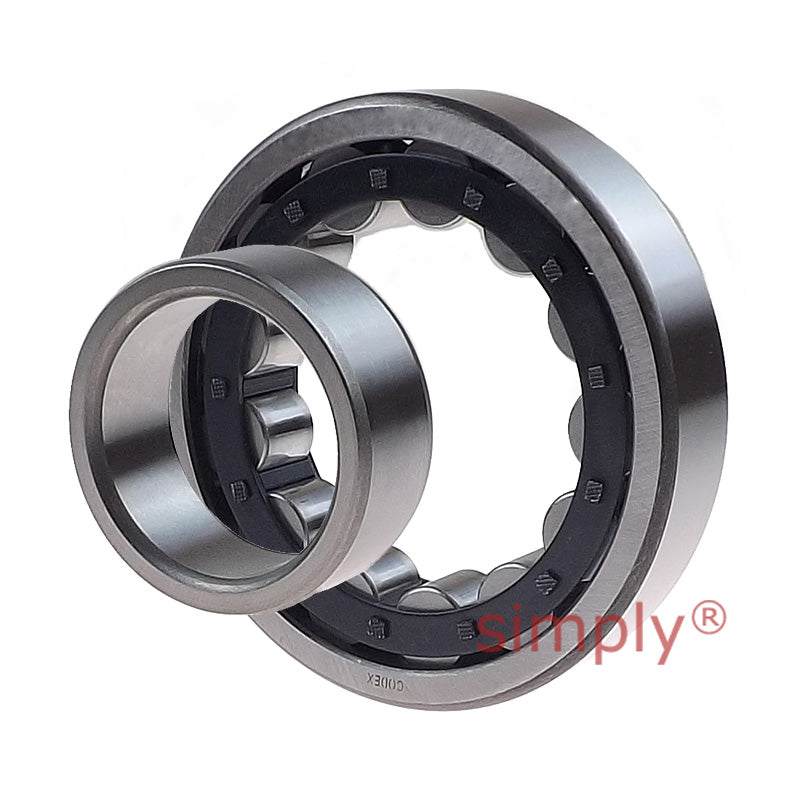

Codex NU314 Single Row Cylindrical Roller Bearing 70x150x35mm
Codex NU314 Single Row Cylindrical Roller Bearing 70x150x35mm
Regular price
CHF 135.00
ex VAT
Regular price
Sale price
CHF 135.00
ex VAT
In stock
Price Break
10+
CHF 107.21
19+
CHF 101.18
29+
CHF 99.98
39+
CHF 98.78
49+
CHF 97.57
74+
CHF 96.37
99+
CHF 90.34
199+
CHF 89.14
249+
CHF 87.93
499+
CHF 86.73
999+
CHF 84.32
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 236 kN |
| Static load Co | 228 kN |
| Fatigue load limit Pu | 29 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.7 kg |
| Cage options | J.M.ML |
| d1 | 97.3mm |
| D1 | 127mm |
| F, E | 89mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 1.8mm |
| da min | 82mm |
| da max | 86mm |
| db min | 91mm |
| Da max | 138mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ314EC |
| Angle ring weight | 0.32kg |
| B1 | 10mm |
| B2 | 15.5mm |
