SKU: NU314ECP/C3-SKF

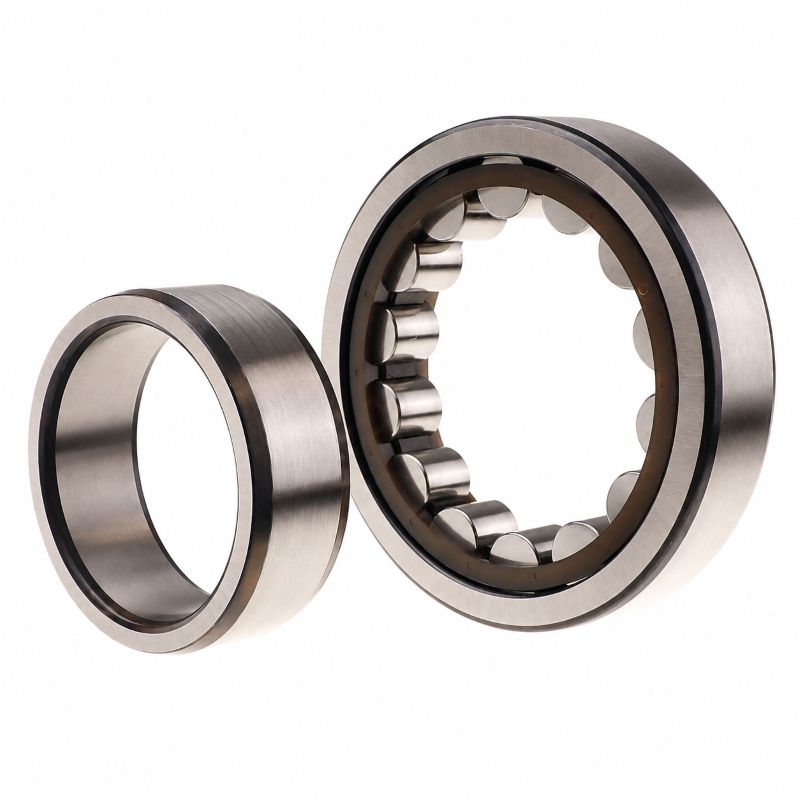

SKF NU314ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 70x150x35mm
SKF NU314ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 70x150x35mm
Regular price
CHF 163.76
ex VAT
Regular price
Sale price
CHF 163.76
ex VAT
In stock
Price Break
10+
CHF 145.75
19+
CHF 137.56
29+
CHF 135.92
39+
CHF 134.28
49+
CHF 132.65
74+
CHF 131.01
99+
CHF 122.82
199+
CHF 121.18
249+
CHF 119.54
499+
CHF 117.91
999+
CHF 114.63
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 236 kN |
| Static load Co | 228 kN |
| Fatigue load limit Pu | 29 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.7 kg |
| Alt cage | J.M.ML |
| d1 | 97.3mm |
| D1 | 127mm |
| F,E | 89mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 1.8mm |
| da min | 82mm |
| da max | 86mm |
| db | 91mm |
| Da max | 138mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ314EC |
| Angle ring weight | 0.32 kg |
| B1 | 10mm |
| B2 | 15.5mm |
