SKU: NU315-CDX

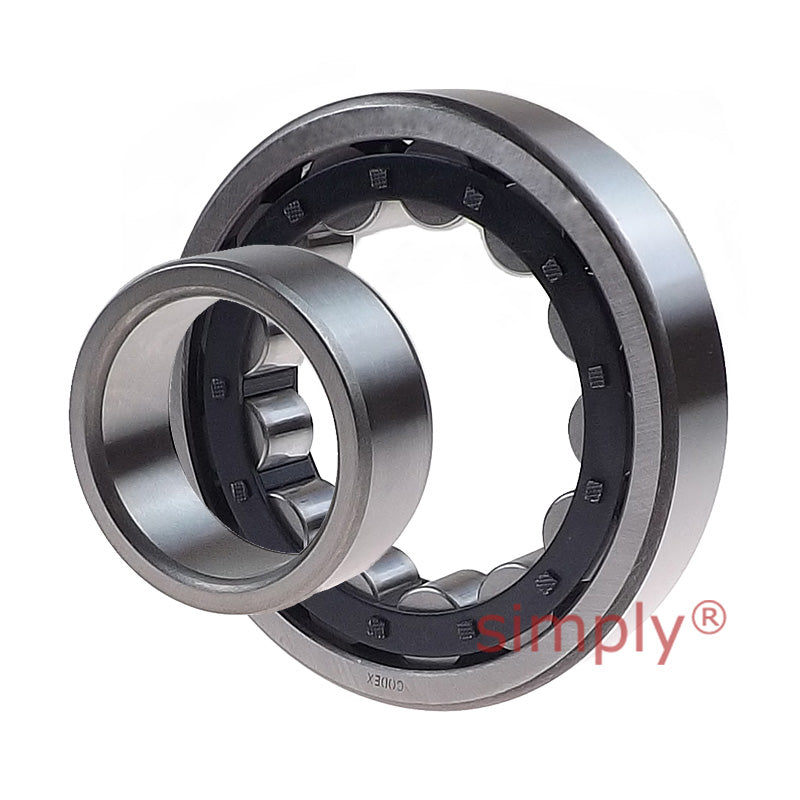

Codex NU315 Single Row Cylindrical Roller Bearing 75x160x37mm
Codex NU315 Single Row Cylindrical Roller Bearing 75x160x37mm
Regular price
CHF 154.96
ex VAT
Regular price
Sale price
CHF 154.96
ex VAT
In stock
Price Break
10+
CHF 137.91
19+
CHF 130.17
29+
CHF 128.62
39+
CHF 127.07
49+
CHF 125.52
74+
CHF 123.97
99+
CHF 116.22
199+
CHF 114.67
249+
CHF 113.12
499+
CHF 111.57
999+
CHF 108.47
Couldn't load pickup availability
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 280 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 33.5 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 3.3 kg |
| Cage options | J.M.ML |
| d1 | 104mm |
| D1 | 136mm |
| F, E | 95mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 1.8mm |
| da min | 87mm |
| da max | 92mm |
| db min | 97mm |
| Da max | 148mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ315EC |
| Angle ring weight | 0.39kg |
| B1 | 11mm |
| B2 | 16.5mm |
