SKU: NU316ECP-SKF

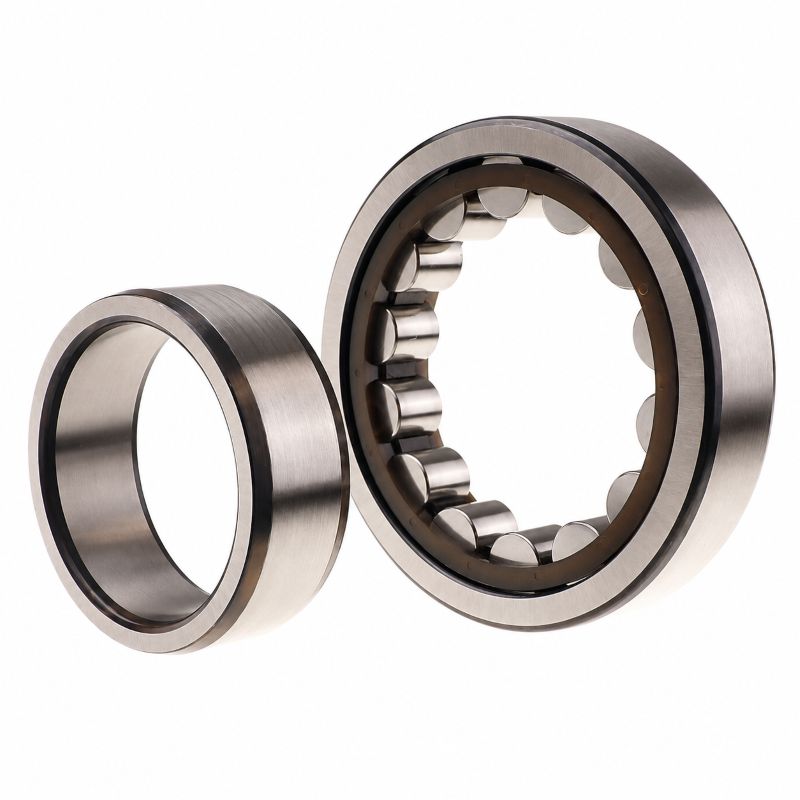

SKF NU316ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 80x170x39mm
SKF NU316ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 80x170x39mm
Regular price
CHF 248.00
ex VAT
Regular price
Sale price
CHF 248.00
ex VAT
In stock
Price Break
10+
CHF 196.89
19+
CHF 185.83
29+
CHF 183.62
39+
CHF 181.40
49+
CHF 179.19
74+
CHF 176.98
99+
CHF 165.92
199+
CHF 163.71
249+
CHF 161.49
499+
CHF 159.28
999+
CHF 154.86
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load C | 300 kN |
| Static load Co | 290 kN |
| Fatigue load limit Pu | 36 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 5000 rpm |
| Weight | 3.9 kg |
| Alt cage | J.M.ML |
| d1 | 110mm |
| D1 | 144mm |
| F,E | 101mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 2.1mm |
| da min | 92mm |
| da max | 98mm |
| db | 104mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ316EC |
| Angle Ring Weight | 0.44 kg |
| B1 | 11mm |
| B2 | 17mm |
