SKU: NU317ECP/C3-SKF

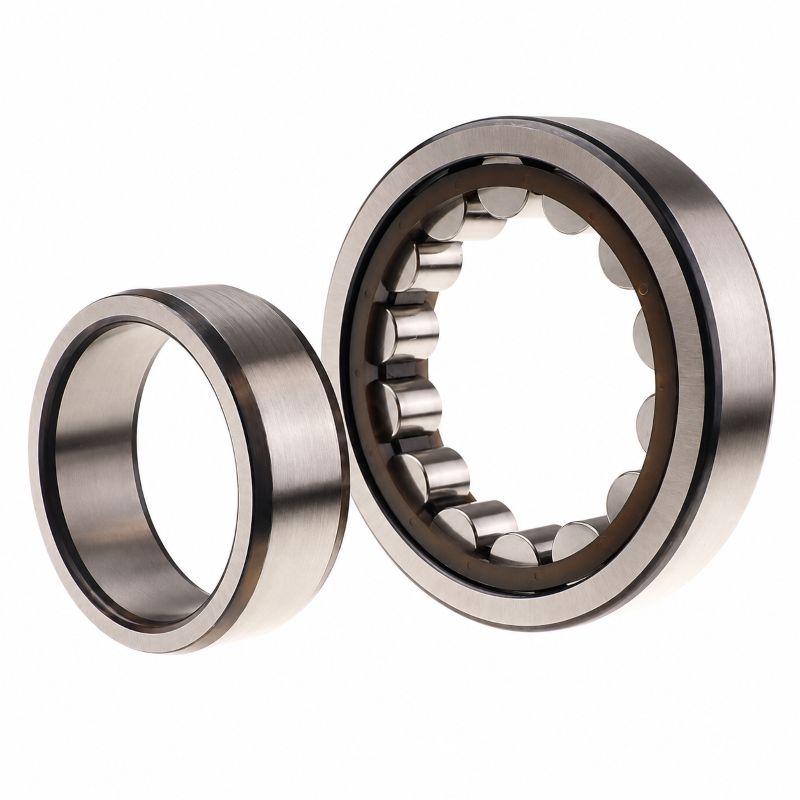

SKF NU317ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 85x180x41mm
SKF NU317ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 85x180x41mm
Regular price
CHF 264.02
ex VAT
Regular price
Sale price
CHF 264.02
ex VAT
In stock
Price Break
10+
CHF 234.98
19+
CHF 221.78
29+
CHF 219.14
39+
CHF 216.50
49+
CHF 213.86
74+
CHF 211.22
99+
CHF 198.02
199+
CHF 195.37
249+
CHF 192.73
499+
CHF 190.09
999+
CHF 184.81
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 180mm
- Width:
- 41mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 85mm |
|---|---|
| D | 180mm |
| B | 41mm |
| Dynamic load C | 340 kN |
| Static load Co | 335 kN |
| Fatigue load limit Pu | 41.5 kN |
| Reference speed | 4000 rpm |
| Limiting speed | 4800 rpm |
| Weight | 4.6 kg |
| Alt cage | J.M |
| d1 | 117mm |
| D1 | 153mm |
| F,E | 108mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 2.3mm |
| da min | 99mm |
| da max | 105mm |
| db | 111mm |
| Da max | 166mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ317EC |
| Angle ring weight | 0.55 kg |
| B1 | 12mm |
| B2 | 18.5mm |
