SKU: NU317ECP-SKF

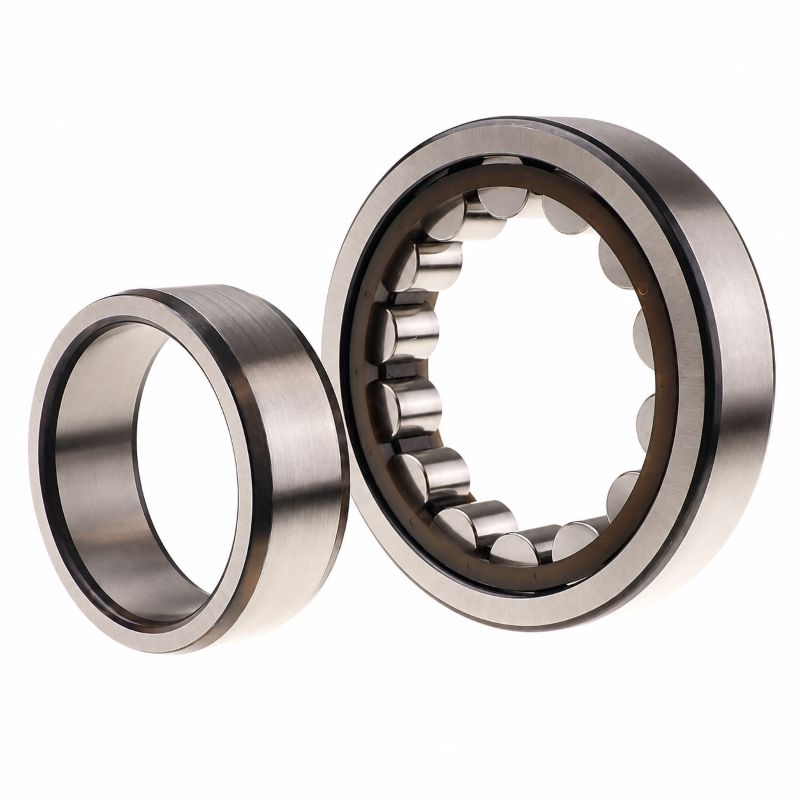

SKF NU317ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 85x180x41mm
SKF NU317ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 85x180x41mm
Regular price
CHF 244.00
ex VAT
Regular price
Sale price
CHF 244.00
ex VAT
In stock
Price Break
10+
CHF 194.07
19+
CHF 183.17
29+
CHF 180.99
39+
CHF 178.81
49+
CHF 176.63
74+
CHF 174.45
99+
CHF 163.55
199+
CHF 161.37
249+
CHF 159.18
499+
CHF 157.00
999+
CHF 152.64
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 180mm
- Width:
- 41mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 180mm |
| B | 41mm |
| Dynamic load C | 340 kN |
| Static load Co | 335 kN |
| Fatigue load limit Pu | 41.5 kN |
| Reference speed | 4000 rpm |
| Limiting speed | 4800 rpm |
| Weight | 4.6 kg |
| Alt cage | J.M |
| d1 | 117mm |
| D1 | 153mm |
| F,E | 108mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 2.3mm |
| da min | 99mm |
| da max | 105mm |
| db | 111mm |
| Da max | 166mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ317EC |
| Angle Ring Weight | 0.55 kg |
| B1 | 12mm |
| B2 | 18.5mm |
