SKU: NU318-CDX

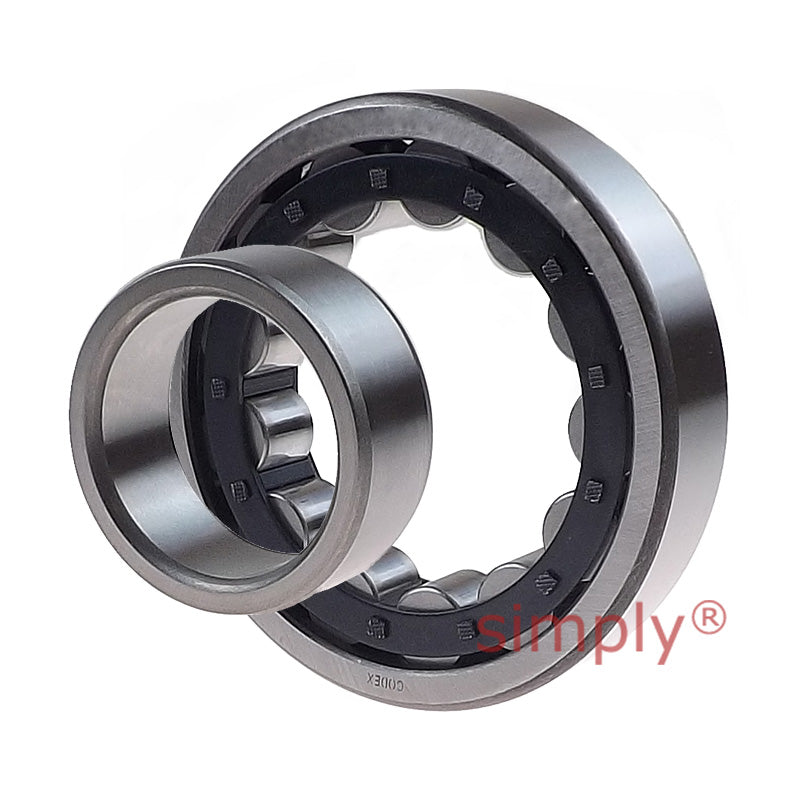

Codex NU318 Single Row Cylindrical Roller Bearing 90x190x43mm
Codex NU318 Single Row Cylindrical Roller Bearing 90x190x43mm
Regular price
CHF 245.00
ex VAT
Regular price
Sale price
CHF 245.00
ex VAT
In stock
Price Break
10+
CHF 194.53
19+
CHF 183.60
29+
CHF 181.41
39+
CHF 179.23
49+
CHF 177.04
74+
CHF 174.86
99+
CHF 163.93
199+
CHF 161.74
249+
CHF 159.56
499+
CHF 157.37
999+
CHF 153.00
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 190mm |
| B | 43mm |
| Dynamic load C | 365 kN |
| Static load Co | 360 kN |
| Fatigue load limit Pu | 43 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 4500 rpm |
| Weight | 5.25 kg |
| Cage options | J.M.ML |
| d1 | 124mm |
| D1 | 162mm |
| F, E | 113.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| s | 2.5mm |
| da min | 104mm |
| da max | 110mm |
| db min | 116mm |
| Da max | 176mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ318EC |
| Angle ring weight | 0.6kg |
| B1 | 12mm |
| B2 | 18.5mm |
