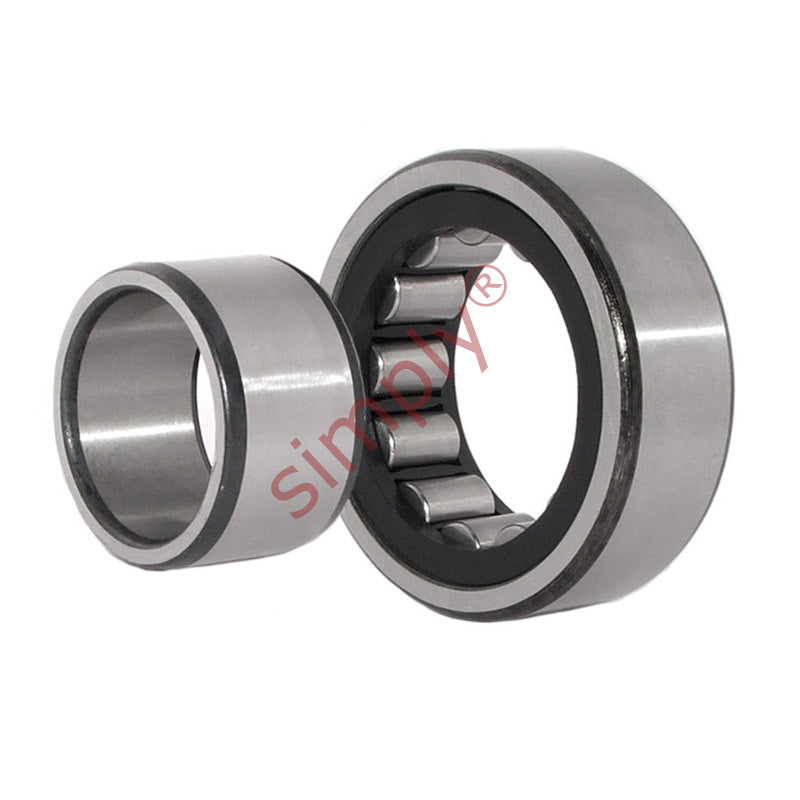

SKF NU319ECMC3VL0241 Insocoat Cylindrical Roller Bearing 95x200x45mm

Name: SKF NU319ECMC3VL0241 Insocoat Cylindrical Roller Bearing 95x200x45mm
Brand: SKF
SKU: NU319ECM/C3VL0241-SKF
Price: 1798.00 CHF
Availability: InStock

CHF 1,798.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 1,432.32

19+ CHF 1,351.86

29+ CHF 1,335.76

39+ CHF 1,319.67

49+ CHF 1,303.58

74+ CHF 1,287.48

99+ CHF 1,207.01

199+ CHF 1,190.92

249+ CHF 1,174.83

499+ CHF 1,158.73

999+ CHF 1,126.55

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated

Brand / Quality:: SKF - High Quality
Inside Diameter:: 95mm
Outside Diameter:: 200mm
Width:: 45mm
Seals / Shields:: None
Clearance:: C3

Technical

d	95mm
D	200mm
B	45mm
Dynamic load C	390 kN
Static load Co	390 kN
Fatigue load limit Pu	46.5 kN
Reference speed	3600 rpm
Limiting speed	4300 rpm
Weight	7.25 kg
D1	170mm
F	121.5mm
r1r2 min	3mm
r1r4 min	3mm
s	2.9mm
da min	109mm
da max	118mm
db min	124mm
Da min	175mm
Da max	186mm
ra max	2.5mm
rb max	2.5mm
kr	0.15
