SKU: NU324ECM/C3VL0241-SKF

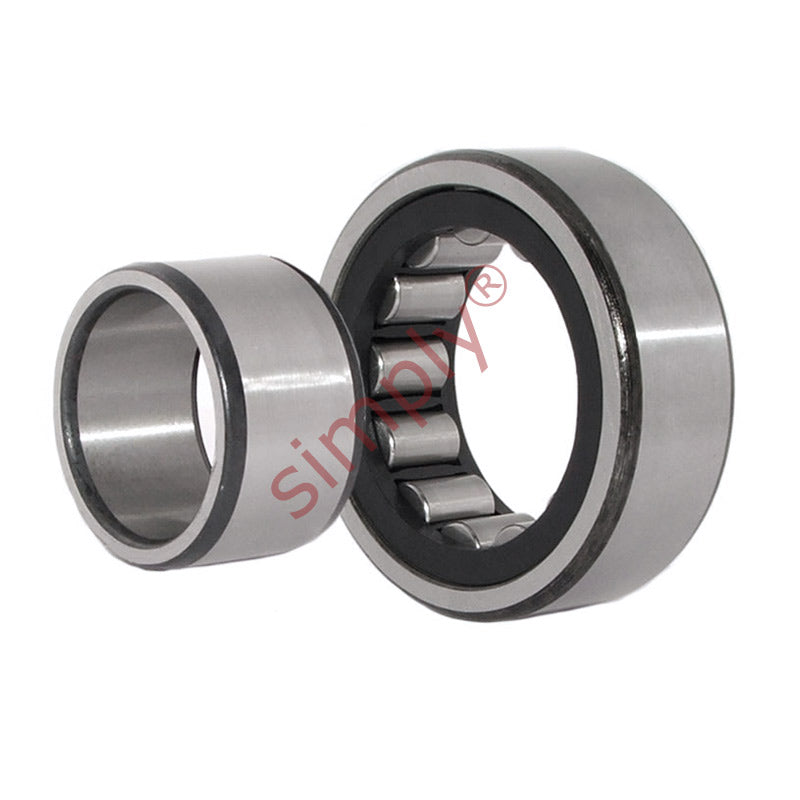

SKF NU324ECMC3VL0241 Insocoat Cylindrical Roller Bearing 120x260x55mm
SKF NU324ECMC3VL0241 Insocoat Cylindrical Roller Bearing 120x260x55mm
Regular price
CHF 2,393.00
ex VAT
Regular price
Sale price
CHF 2,393.00
ex VAT
In stock
Price Break
10+
CHF 1,907.95
19+
CHF 1,800.76
29+
CHF 1,779.32
39+
CHF 1,757.88
49+
CHF 1,736.45
74+
CHF 1,715.01
99+
CHF 1,607.82
199+
CHF 1,586.38
249+
CHF 1,564.95
499+
CHF 1,543.51
999+
CHF 1,500.63
Share this product
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 260mm |
| B | 55mm |
| Dynamic load C | 610 kN |
| Static load Co | 620 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 3200 rpm |
| Weight | 15.2 kg |
| D1 | 219mm |
| F | 154mm |
| r1r2 min | 3mm |
| r1r4 min | 3mm |
| s | 3.7mm |
| da min | 134mm |
| da max | 150mm |
| db min | 157mm |
| Da min | 225mm |
| Da max | 246mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
