SKU: NUKRE40A-EU
Budget NUKRE40A Crowned Cam Follower with Eccentric Stud 40x20x22 M18x1.5 Thread
In stock
Price Break
Couldn't load pickup availability
Description
NUKRE Series Crowned Cam Followers: Different from the NUKR series by the addition of a shrink-fit eccentric collar on the stud. These cam followers incorporate a double row full complement needle roller assembly allowing for maximum load support manufactured with integral flanges for axial guidance and permitting a thick outer ring allowing for heavy loads and shock to be supported. Sealing is provided by pressed sheet metal labyrinth seals. NUKRE series cam followers support both heavy radial and axial loads and can operate at high speeds but require frequent re-lubrication. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 40mm
- Width:
- 20mm
- Pitch:
- M18x1.5

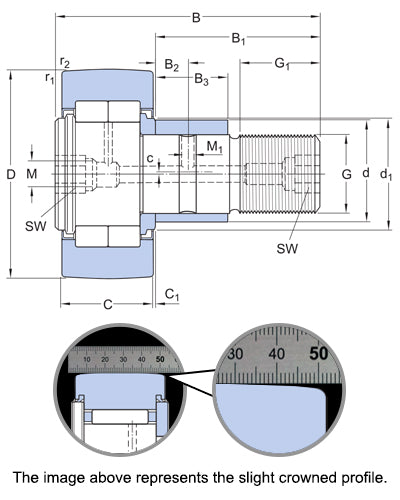

Technical
| D | 40mm |
|---|---|
| C | 20mm |
| d (Stud Diameter) | 22mm |
| B | 58mm |
| B1 | 33.5mm |
| C1 | 3.8mm |
| d1 | 30mm |
| G | M18x1.5 |
| G1 | 19mm |
| r min | 1mm |
| SW | 8mm |
| Eccentric stud c | 1mm |
| B3 | 14mm |
| Dynamic load | 19000 N |
| Static load | 22000 N |
| Fatigue load limit Pu | 2500 N |
| Radial dynamic load | 14000 N |
| Radial static load | 20000 N |
| Speed rating | 5500 rpm |
| Weight | 260 g |
