SKU: NUP215-EU

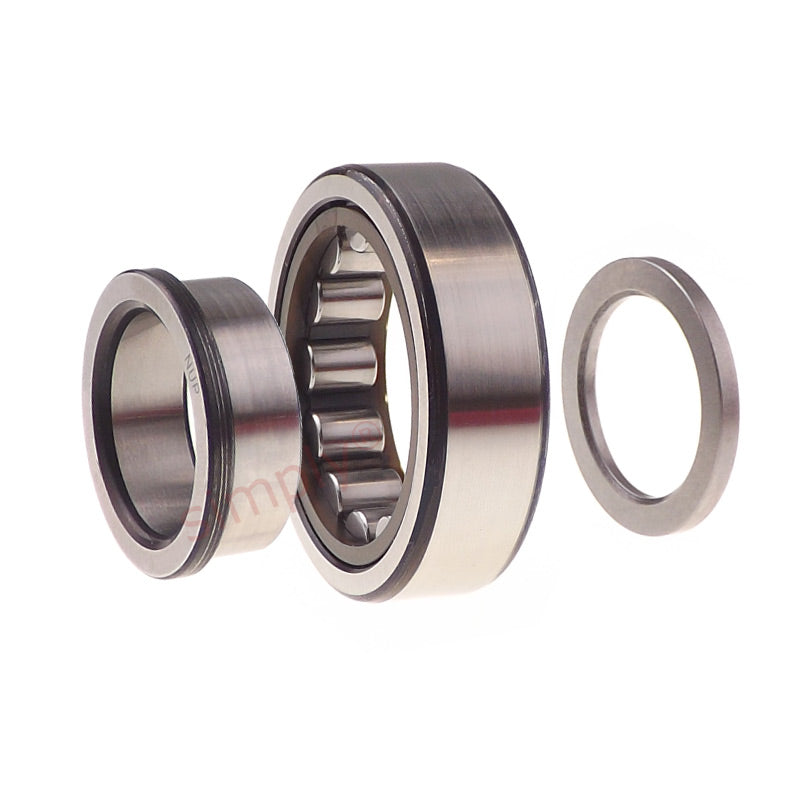

NUP215 Budget Single Row Cylindrical Roller Bearing 75x130x25mm
NUP215 Budget Single Row Cylindrical Roller Bearing 75x130x25mm
Regular price
CHF 95.00
ex VAT
Regular price
Sale price
CHF 95.00
ex VAT
In stock
Price Break
10+
CHF 75.48
19+
CHF 71.24
29+
CHF 70.39
39+
CHF 69.55
49+
CHF 68.70
74+
CHF 67.85
99+
CHF 63.61
199+
CHF 62.76
249+
CHF 61.91
499+
CHF 61.07
999+
CHF 59.37
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 25mm |
| Dynamic load C | 150 kN |
| Static load Co | 156 kN |
| Fatigue load limit Pu | 20.4 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.35 kg |
| Cage options | M.ML |
| d1 | 94.3mm |
| D1 | 114mm |
| F, E | 88.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| da min | 84mm |
| db min | 97mm |
| Da max | 121mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
