SKU: NUP216-CDX

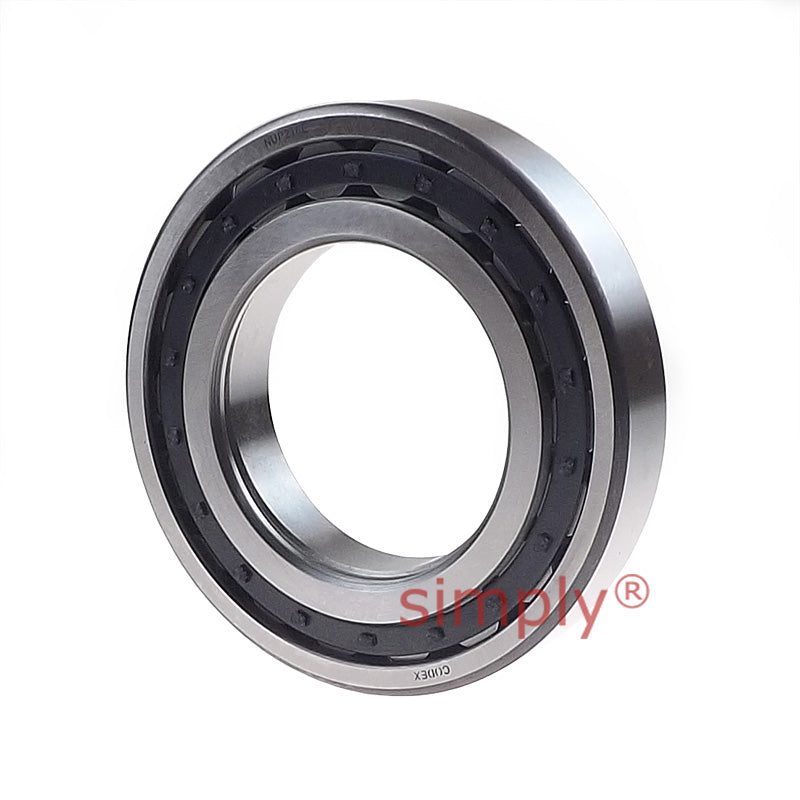

Codex NUP216 Single Row Cylindrical Roller Bearing 80x140x26mm
Codex NUP216 Single Row Cylindrical Roller Bearing 80x140x26mm
Regular price
CHF 124.00
ex VAT
Regular price
Sale price
CHF 124.00
ex VAT
In stock
Price Break
10+
CHF 98.48
19+
CHF 92.95
29+
CHF 91.84
39+
CHF 90.74
49+
CHF 89.63
74+
CHF 88.52
99+
CHF 82.99
199+
CHF 81.88
249+
CHF 80.78
499+
CHF 79.67
999+
CHF 77.46
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dynamic load C | 160 kN |
| Static load Co | 166 kN |
| Fatigue load limit Pu | 21.2 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.65 kg |
| Cage options | ML |
| d1 | 101mm |
| D1 | 123mm |
| F, E | 95.3mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| da min | 91mm |
| db min | 104mm |
| Da max | 129mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
