SKU: NUP216ECP/C3-SKF

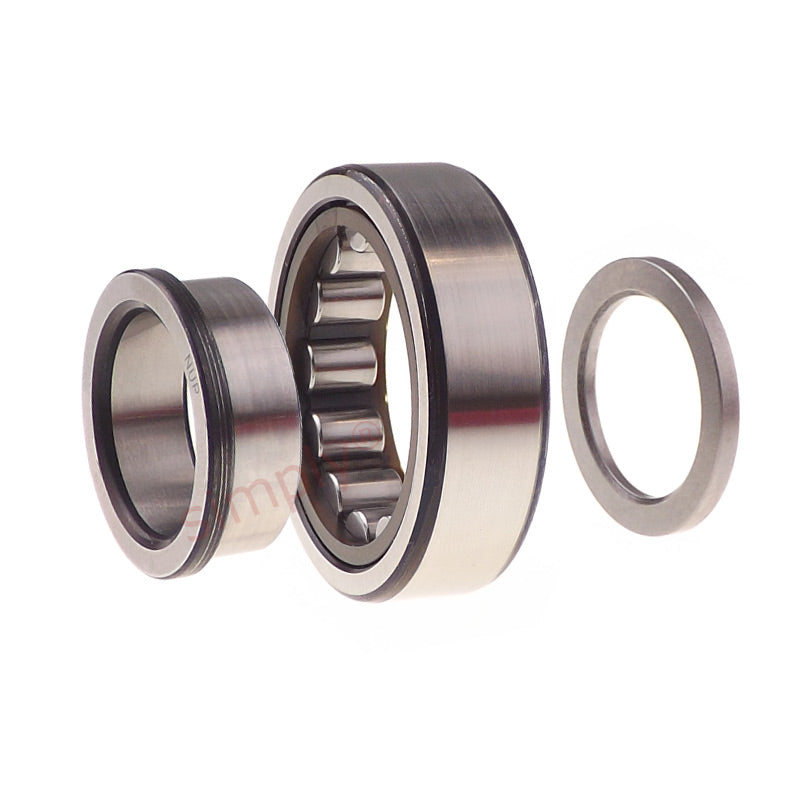

SKF NUP216ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 80x140x26mm
SKF NUP216ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 80x140x26mm
Regular price
CHF 183.29
ex VAT
Regular price
Sale price
CHF 183.29
ex VAT
In stock
Price Break
10+
CHF 163.13
19+
CHF 153.96
29+
CHF 152.13
39+
CHF 150.30
49+
CHF 148.46
74+
CHF 146.63
99+
CHF 137.47
199+
CHF 135.63
249+
CHF 133.80
499+
CHF 131.97
999+
CHF 128.30
Couldn't load pickup availability
Description
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dynamic load C | 160 kN |
| Static load Co | 166 kN |
| Fatigue load limit Pu | 21.2 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.65 kg |
| Alt cage | ML |
| d1 | 101mm |
| D1 | 123mm |
| F,E | 95.3mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| da min | 91mm |
| db | 104mm |
| Da max | 129mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
