SKU: NUP224ECJ/C3-SKF

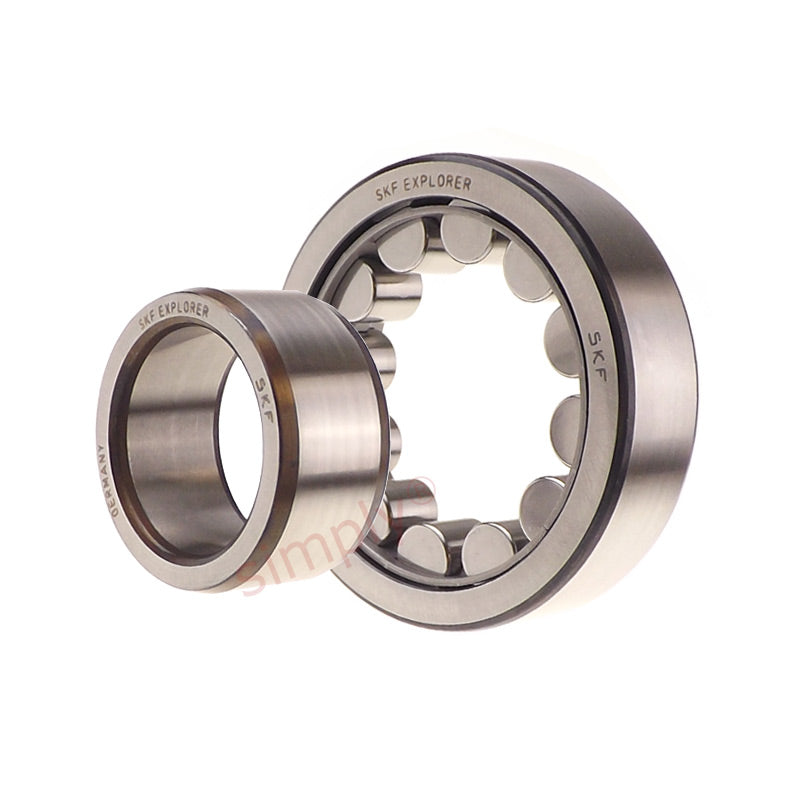

SKF NUP224ECJC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x215x40mm
SKF NUP224ECJC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x215x40mm
Regular price
CHF 825.08
ex VAT
Regular price
Sale price
CHF 825.08
ex VAT
In stock
Price Break
10+
CHF 734.32
19+
CHF 693.07
29+
CHF 684.82
39+
CHF 676.57
49+
CHF 668.31
74+
CHF 660.06
99+
CHF 618.81
199+
CHF 610.56
249+
CHF 602.31
499+
CHF 594.06
999+
CHF 577.56
Couldn't load pickup availability
Description
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| Dynamic load C | 390 kN |
| Static load Co | 430 kN |
| Fatigue load limit Pu | 49 kN |
| Reference speed | 3400 rpm |
| Limiting speed | 3600 rpm |
| Weight | 6 kg |
| Alt cage | ML |
| d1 | 153mm |
| D1 | 188mm |
| F,E | 143.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| da min | 132mm |
| db | 156mm |
| Da max | 203mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
