SKU: NUP2312-EU
NUP2312 Budget Single Row Cylindrical Roller Bearing 60x130x46mm
NUP2312 Budget Single Row Cylindrical Roller Bearing 60x130x46mm
Regular price
CHF 151.00
ex VAT
Regular price
Sale price
CHF 151.00
ex VAT
In stock
Price Break
10+
CHF 119.80
19+
CHF 113.07
29+
CHF 111.72
39+
CHF 110.37
49+
CHF 109.03
74+
CHF 107.68
99+
CHF 100.95
199+
CHF 99.61
249+
CHF 98.26
499+
CHF 96.91
999+
CHF 94.22
Description
Description
|

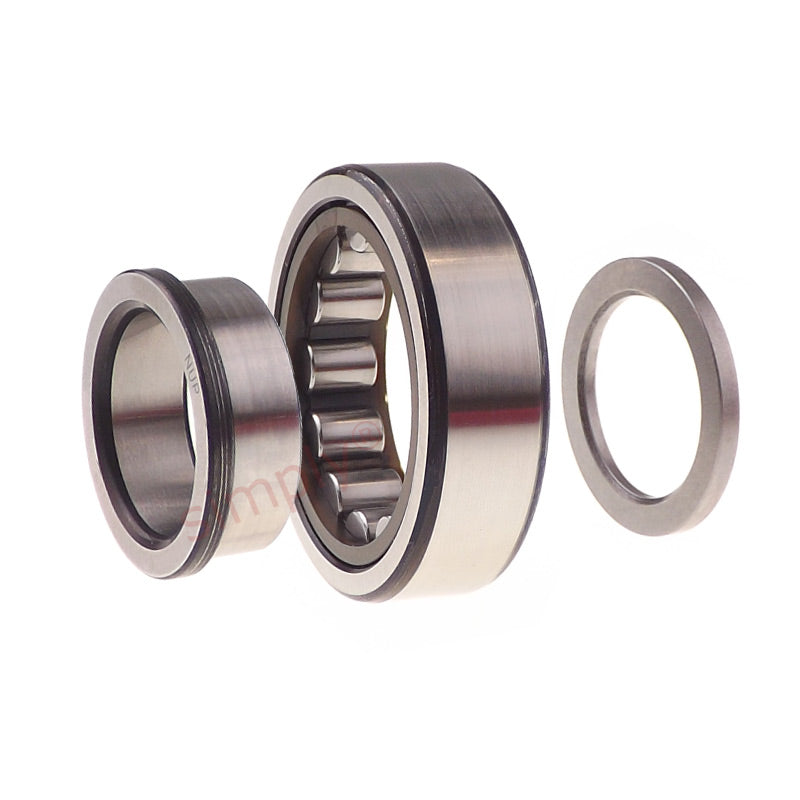

NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 46mm |
| Dynamic load C | 260 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 34.5 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6700 rpm |
| Weight | 2.85 kg |
| Cage options | ML |
| d1 | 84.3mm |
| D1 | 110mm |
| F, E | 77mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| da min | 72mm |
| db min | 87mm |
| Da max | 118mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
