SKU: NUP304-EU

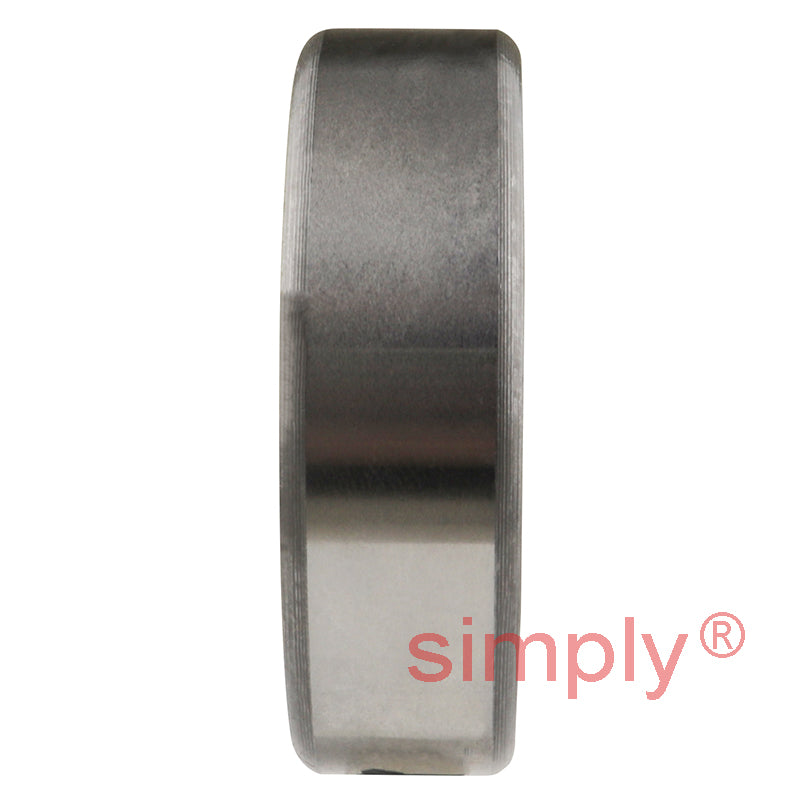

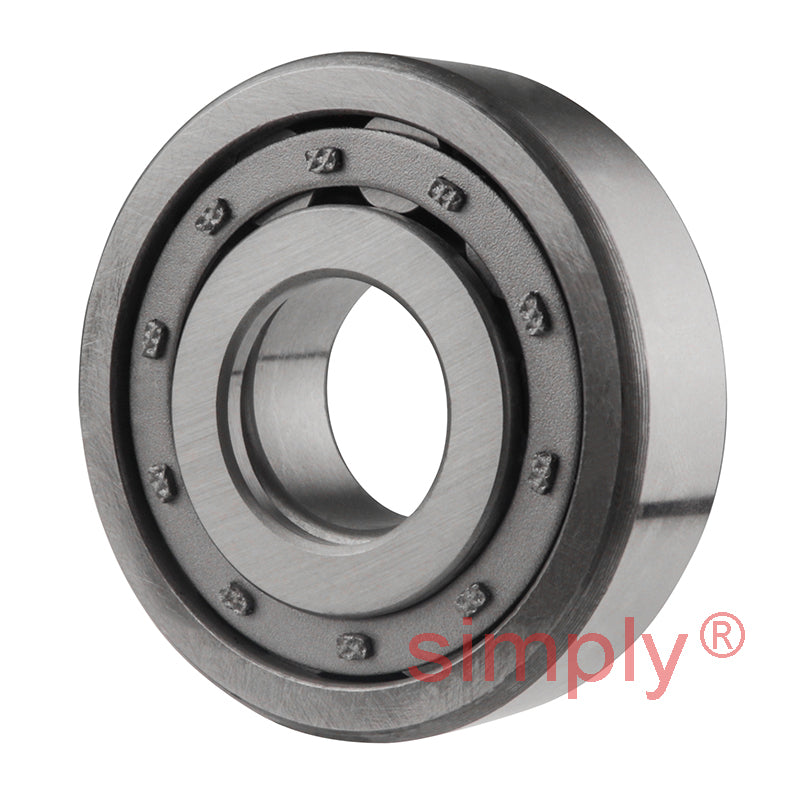

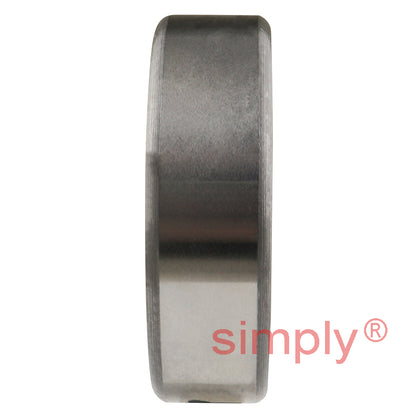

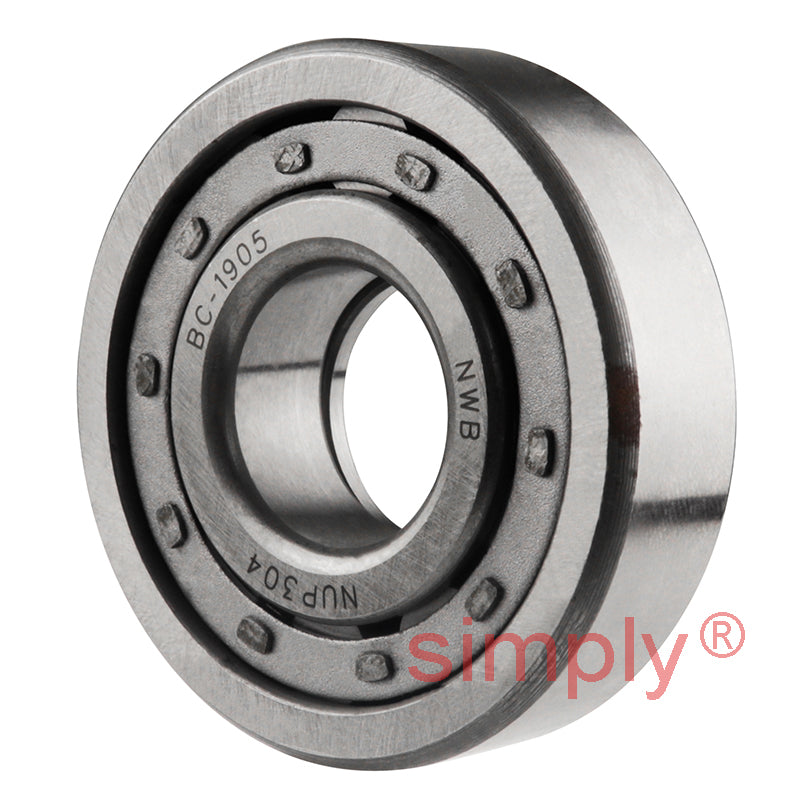

NUP304 Budget Single Row Cylindrical Roller Bearing 20x52x15mm
NUP304 Budget Single Row Cylindrical Roller Bearing 20x52x15mm
Regular price
CHF 28.00
ex VAT
Regular price
Sale price
CHF 28.00
ex VAT
In stock
Price Break
10+
CHF 21.96
19+
CHF 20.73
29+
CHF 20.48
39+
CHF 20.23
49+
CHF 19.99
74+
CHF 19.74
99+
CHF 18.51
199+
CHF 18.26
249+
CHF 18.01
499+
CHF 17.77
999+
CHF 17.27
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 35.5 kN |
| Static load Co | 26 kN |
| Fatigue load limit Pu | 3.25 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 18000 rpm |
| Weight | 0.16 kg |
| d1 | 31.2mm |
| D1 | 42.4mm |
| F, E | 27.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| da min | 27mm |
| db min | 33mm |
| Da max | 45mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
