SKU: NUP307-CDX

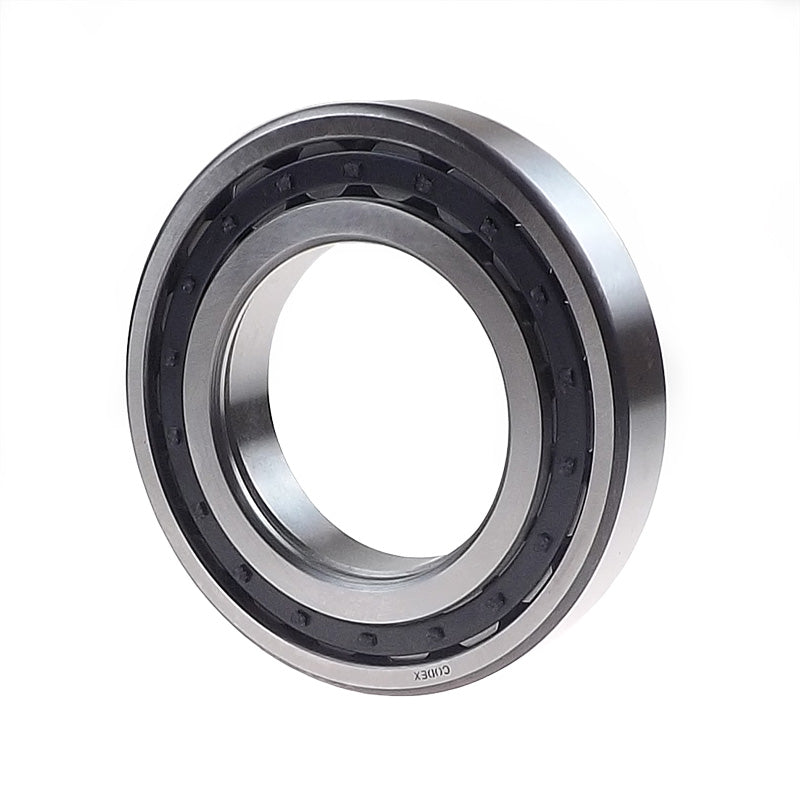

Codex NUP307 Single Row Cylindrical Roller Bearing 35x80x21mm
Codex NUP307 Single Row Cylindrical Roller Bearing 35x80x21mm
Regular price
CHF 61.00
ex VAT
Regular price
Sale price
CHF 61.00
ex VAT
In stock
Price Break
10+
CHF 48.54
19+
CHF 45.81
29+
CHF 45.27
39+
CHF 44.72
49+
CHF 44.18
74+
CHF 43.63
99+
CHF 40.91
199+
CHF 40.36
249+
CHF 39.81
499+
CHF 39.27
999+
CHF 38.18
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| Dynamic load C | 75 kN |
| Static load Co | 63 kN |
| Fatigue load limit Pu | 8.15 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.5 kg |
| Cage options | J.M.ML |
| d1 | 51mm |
| D1 | 66.3mm |
| F, E | 46.2mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.1mm |
| da min | 44mm |
| db min | 53mm |
| Da max | 71mm |
| ra max | 1.5mm |
| rb max | 1mm |
| kr | 0.15 |
