SKU: NUP309-EU

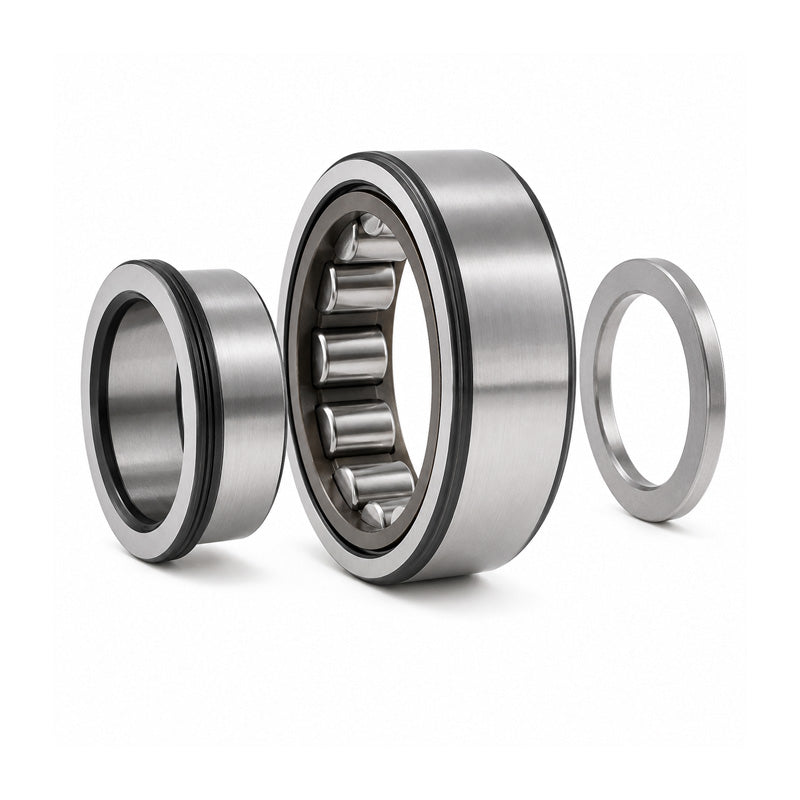

NUP309 Budget Single Row Cylindrical Roller Bearing 45x100x25mm
NUP309 Budget Single Row Cylindrical Roller Bearing 45x100x25mm
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
In stock
Price Break
10+
CHF 11.60
19+
CHF 10.95
29+
CHF 10.81
39+
CHF 10.68
49+
CHF 10.55
74+
CHF 10.42
99+
CHF 9.77
199+
CHF 9.64
249+
CHF 9.51
499+
CHF 9.38
999+
CHF 9.12
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 112 kN |
| Static load Co | 100 kN |
| Fatigue load limit Pu | 12.9 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.95 kg |
| Cage options | J.ML |
| d1 | 64.4mm |
| D1 | 83.8mm |
| F, E | 58.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| da min | 54mm |
| db min | 67mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
