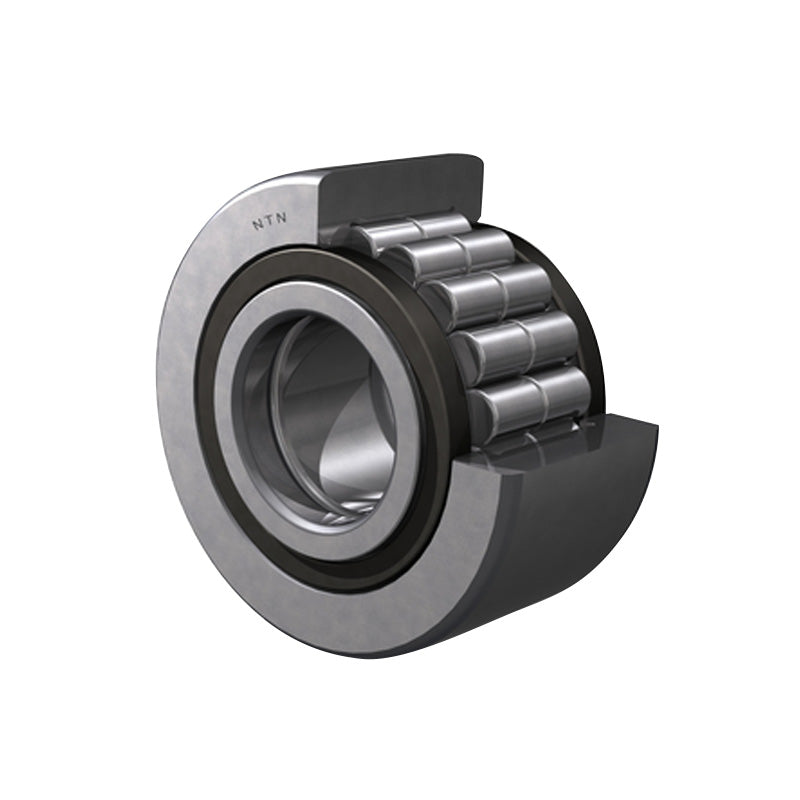

NTN NUTR206X/3AS Yoke Type Track Roller with Inner Race 30x62x28mm - Allow 2-3 Days
NTN NUTR206X/3AS Yoke Type Track Roller with Inner Race 30x62x28mm - Allow 2-3 Days
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
3+
CHF 54.83
4+
CHF 52.61
9+
CHF 51.50
19+
CHF 49.84
49+
CHF 48.73
99+
CHF 45.97
499+
CHF 38.77
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
NTN NUTR Type Track Rollers: These track rollers are heavy-duty cam followers designed for maximum load capacity and durability in demanding industrial environments. Built with a full complement of cylindrical rollers and a thick-walled outer ring, these bearings offer exceptional resistance to shock loads and deformation. The NUTR series includes integral seals to retain lubrication and keep out contaminants, ensuring long service life and smooth operation. Ideal for applications such as conveyors, cam drives, guide systems, and heavy machinery.
Benefits: Heavy duty, long service life, smooth and reliable
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 28mm
Technical
Technical
| d - Inside diameter | 30mm |
|---|---|
| D - Outside diameter | 62mm |
| C - Outer ring width | 28mm |
| F - Under roller diameter | 35mm |
| B - Bearing width | 29mm |
| e - Inlet diameter | 38mm |
| rs - Minimum fillet radius | 0.3mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 56.5 kN |
| C0r - Static load rating | 72.5 kN |
| Track load capacity | 33 kN |
| N - Grease lubrication limit speed | 2900 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
