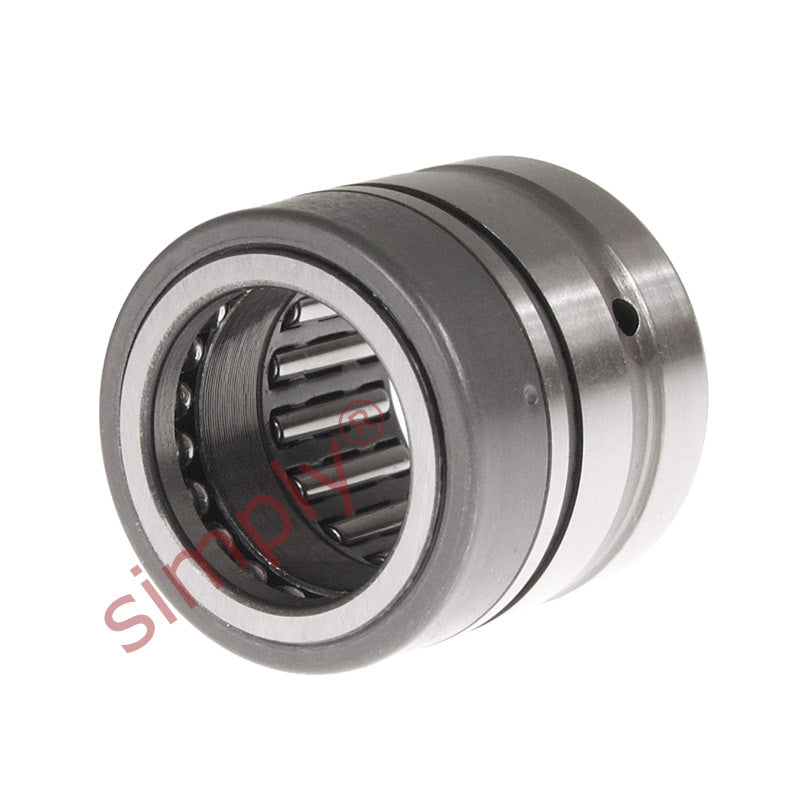

NX15Z Budget Full Complement Needle Roller Thrust Ball Bearing 15x24x28mm
NX15Z Budget Full Complement Needle Roller Thrust Ball Bearing 15x24x28mm
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
In stock
Price Break
10+
CHF 18.86
19+
CHF 17.80
29+
CHF 17.59
39+
CHF 17.38
49+
CHF 17.17
74+
CHF 16.96
99+
CHF 15.90
199+
CHF 15.68
249+
CHF 15.47
499+
CHF 15.26
999+
CHF 14.84
Share this product
Description
Description
Budget NX..Z Series Needle Roller / Ball Thrust Combination: Of a non separable design has a closed cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication and the cover serves to retain the grease. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 28mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 28mm |
| Dynamic load | 11200 N |
| Static load | 14000 N |
| Axial dynamic load | 6180 N |
| Axial static load | 12200 N |
| Radial fatigue load limit Pu | 1660 N |
| Axial fatigue load limit Pu | 450 N |
| Min load factor A | 0.77 |
| Speed in grease | 5600 rpm |
| C1 | 8mm |
| d | 15mm |
| r1r2 min | 0.3mm |
| da | 19mm |
| Da max | 22mm |
| Ca | 12.2mm |
| ra max | 0.3mm |
| di | 12mm |
| F | 15mm |
| Bi | 16mm |
| Inner ring | IR12x15x16 |
| Retaining ring | SW24 |
| Weight | 48 g |
