SKU: NX17Z-MB

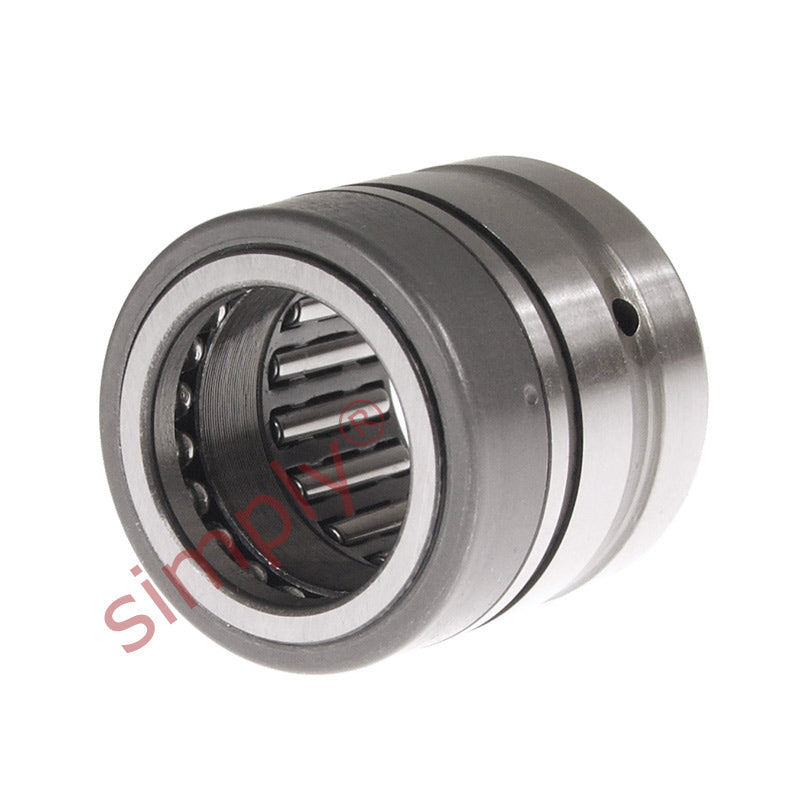

Major Brand NX17Z Needle Roller / Full Complement Thrust Ball Bearing 17x26x28mm
Major Brand NX17Z Needle Roller / Full Complement Thrust Ball Bearing 17x26x28mm
Regular price
CHF 62.67
ex VAT
Regular price
Sale price
CHF 62.67
ex VAT
In stock
Price Break
10+
CHF 55.78
19+
CHF 52.64
29+
CHF 52.02
39+
CHF 51.39
49+
CHF 50.76
74+
CHF 50.14
99+
CHF 47.00
199+
CHF 46.38
249+
CHF 45.75
499+
CHF 45.12
999+
CHF 43.87
Couldn't load pickup availability
Description
Description
NX..Z Series Needle Roller / Ball Thrust Combination: Of a non separable design has a closed cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication and the cover serves to retain the grease. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 28mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 26mm |
| C | 28mm |
| Dynamic load | 12300 N |
| Static load | 16600 N |
| Axial dynamic load | 6370 N |
| Axial static load | 13400 N |
| Fatigue load limit radial Pu | 1960 N |
| Fatigue load limit axial Pu | 500 N |
| Min load factor A | 0.93 |
| Speed in grease | 5300 rpm |
| C1 | 8mm |
| d | 17mm |
| r1r2 min | 0.3mm |
| da | 21mm |
| Da max | 24mm |
| Ca | 12.2mm |
| ra max | 0.3mm |
| di | 14mm |
| F | 17mm |
| Bi | 17mm |
| Inner Ring | IR14x17x17 |
| Retaining Ring | SW26 |
| Weight | 53 g |
