SKU: NX20Z-MB

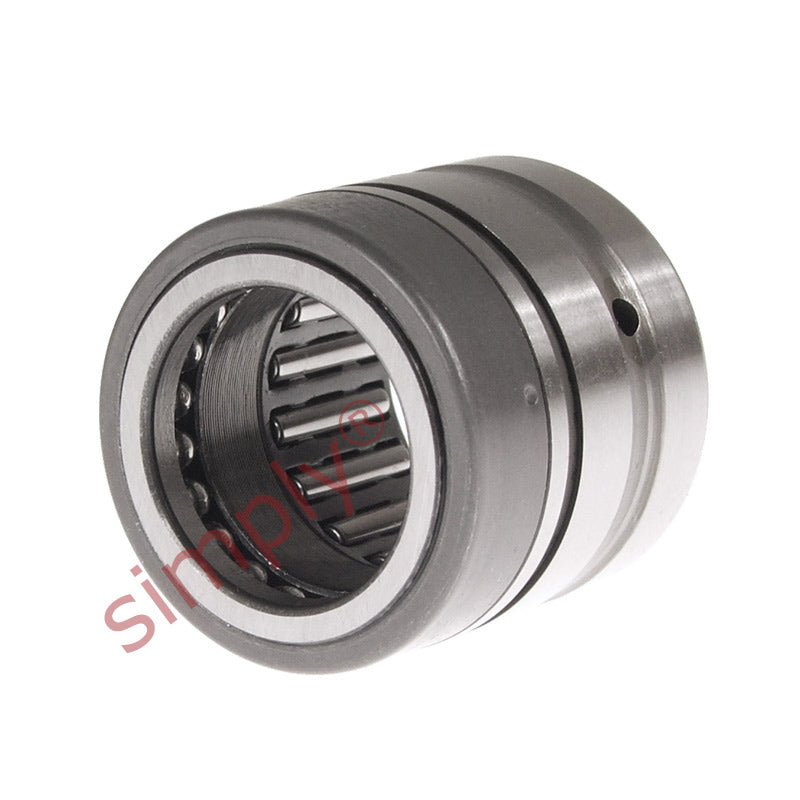

Major Brand NX20Z Needle Roller / Full Complement Thrust Ball Bearing 20x30x28mm
Major Brand NX20Z Needle Roller / Full Complement Thrust Ball Bearing 20x30x28mm
Regular price
CHF 43.34
ex VAT
Regular price
Sale price
CHF 43.34
ex VAT
In stock
Price Break
10+
CHF 38.57
19+
CHF 36.41
29+
CHF 35.97
39+
CHF 35.54
49+
CHF 35.11
74+
CHF 34.67
99+
CHF 32.51
199+
CHF 32.07
249+
CHF 31.64
499+
CHF 31.20
999+
CHF 30.34
Couldn't load pickup availability
Description
Description
NX..Z Series Needle Roller / Ball Thrust Combination: Of a non separable design has a closed cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication and the cover serves to retain the grease. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 28mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 28mm |
| Dynamic load | 13400 N |
| Static load | 19600 N |
| Axial dynamic load | 7800 N |
| Axial static load | 17300 N |
| Fatigue load limit radial Pu | 2280 N |
| Fatigue load limit axial Pu | 640 N |
| Min load factor A | 1.6 |
| Speed in grease | 4800 rpm |
| C1 | 8mm |
| d | 20mm |
| r1r2 min | 0.3mm |
| da | 25mm |
| Da max | 28mm |
| Ca | 12.2mm |
| ra max | 0.3mm |
| di | 17mm |
| F | 20mm |
| Bi | 16mm |
| Inner Ring | IR17x20x16 |
| Retaining Ring | SW30 |
| Weight | 68 g |
