SKU: NX25-MB

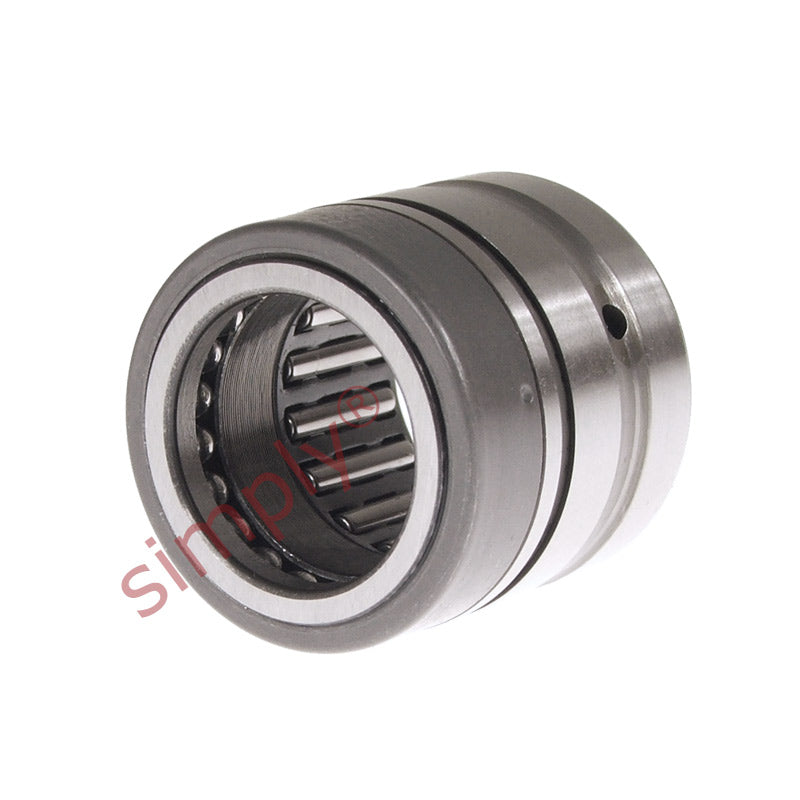

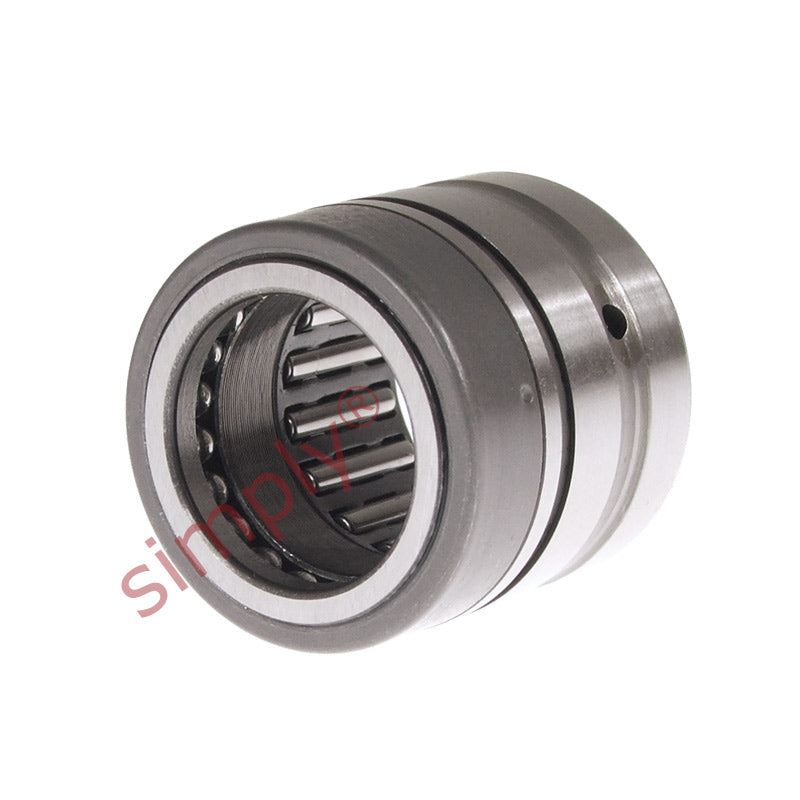

Major Brand NX25 Needle Roller / Full Complement Thrust Ball Bearing 25x37x30mm
Major Brand NX25 Needle Roller / Full Complement Thrust Ball Bearing 25x37x30mm
Regular price
CHF 99.42
ex VAT
Regular price
Sale price
CHF 99.42
ex VAT
In stock
Price Break
10+
CHF 88.48
19+
CHF 83.51
29+
CHF 82.52
39+
CHF 81.52
49+
CHF 80.53
74+
CHF 79.54
99+
CHF 74.57
199+
CHF 73.57
249+
CHF 72.58
499+
CHF 71.58
999+
CHF 69.59
Couldn't load pickup availability
Description
Description
NX Series Needle Roller / Ball Thrust Combination: Of a non separable design has a perforated cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to oil lubrication and the cover permits circulation through oil holes in its circumference. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 30mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 37mm |
| C | 30mm |
| Dynamic load | 15400 N |
| Static load | 25000 N |
| Axial dynamic load | 12400 N |
| Axial static load | 28500 N |
| Fatigue load limit radial Pu | 2900 N |
| Fatigue load limit axial Pu | 1060 N |
| Min load factor A | 4.2 |
| Speed in oil | 5600 rpm |
| C1 | 8mm |
| d | 25mm |
| r1r2 min | 0.3mm |
| da | 31.5mm |
| Da max | 35mm |
| Ca | 14.2mm |
| ra max | 0.3mm |
| di | 20mm |
| F | 25mm |
| Bi | 16mm |
| Inner Ring | IR20x25x16 |
| Retaining Ring | SW37 |
| Weight | 120 g |
