SKU: NX35Z-EU

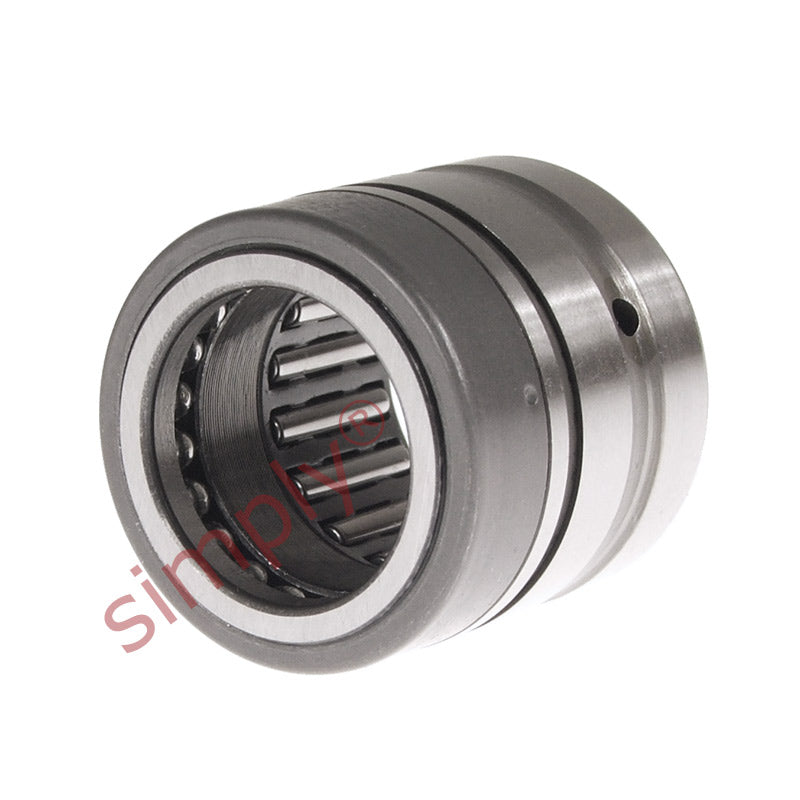

NX35Z Budget Full Complement Needle Roller Thrust Ball Bearing 35x47x30mm
NX35Z Budget Full Complement Needle Roller Thrust Ball Bearing 35x47x30mm
Regular price
CHF 47.00
ex VAT
Regular price
Sale price
CHF 47.00
ex VAT
In stock
Price Break
10+
CHF 36.98
19+
CHF 34.90
29+
CHF 34.49
39+
CHF 34.07
49+
CHF 33.66
74+
CHF 33.24
99+
CHF 31.16
199+
CHF 30.75
249+
CHF 30.33
499+
CHF 29.92
999+
CHF 29.09
Share this product
Description
Description
Budget NX..Z Series Needle Roller / Ball Thrust Combination: Of a non separable design has a closed cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication and the cover serves to retain the grease. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 47mm |
| C | 30mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Axial dynamic load | 13500 N |
| Axial static load | 38000 N |
| Radial fatigue load limit Pu | 5600 N |
| Axial fatigue load limit Pu | 1400 N |
| Min load factor A | 7.5 |
| Speed in grease | 3800 rpm |
| C1 | 10mm |
| d | 35mm |
| r1r2 min | 0.3mm |
| da | 40.5mm |
| Da max | 45mm |
| Ca | 14.2mm |
| ra max | 0.3mm |
| di | 30mm |
| F | 35mm |
| Bi | 20mm |
| Inner ring | IR30x35x20 |
| Retaining ring | SW47 |
| Weight | 160 g |
