SKU: NX7TN-MB

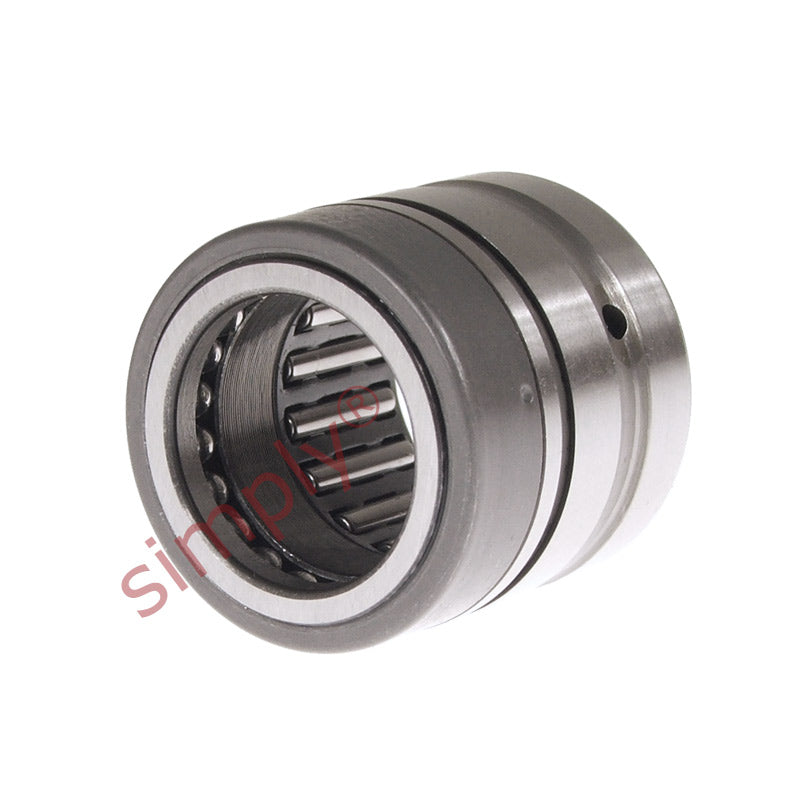

Major Brand NX7TN Needle Roller / Full Complement Thrust Ball Bearing with Closure Ring 7x14x18mm
Major Brand NX7TN Needle Roller / Full Complement Thrust Ball Bearing with Closure Ring 7x14x18mm
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
10+
CHF 23.62
19+
CHF 22.29
29+
CHF 22.03
39+
CHF 21.76
49+
CHF 21.50
74+
CHF 21.23
99+
CHF 19.91
199+
CHF 19.64
249+
CHF 19.37
499+
CHF 19.11
999+
CHF 18.58
Share this product
Description
Description
NX Series Needle Roller / Ball Thrust Combination: Of a non separable design has a perforated cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to oil lubrication and the cover permits circulation through oil holes in its circumference. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 14mm
- Width:
- 18mm
Technical
Technical
| Fw | 7mm |
|---|---|
| D | 14mm |
| C | 18mm |
| Dynamic load | 2810 N |
| Static load | 2750 N |
| Axial dynamic load | 3450 N |
| Axial static load | 5000 N |
| Fatigue load limit radial Pu | 290 N |
| Fatigue load limit axial Pu | 186 N |
| Min load factor A | 0.13 |
| Speed in oil | 10000 rpm |
| C1 | 4.7mm |
| d | 7mm |
| r1r2 min | 0.3mm |
| da | 9.5mm |
| Da max | 12mm |
| Ca | 10mm |
| ra max | 0.3mm |
| Inner Ring | - |
| Retaining Ring | SW14 |
| Weight | 14 g |
