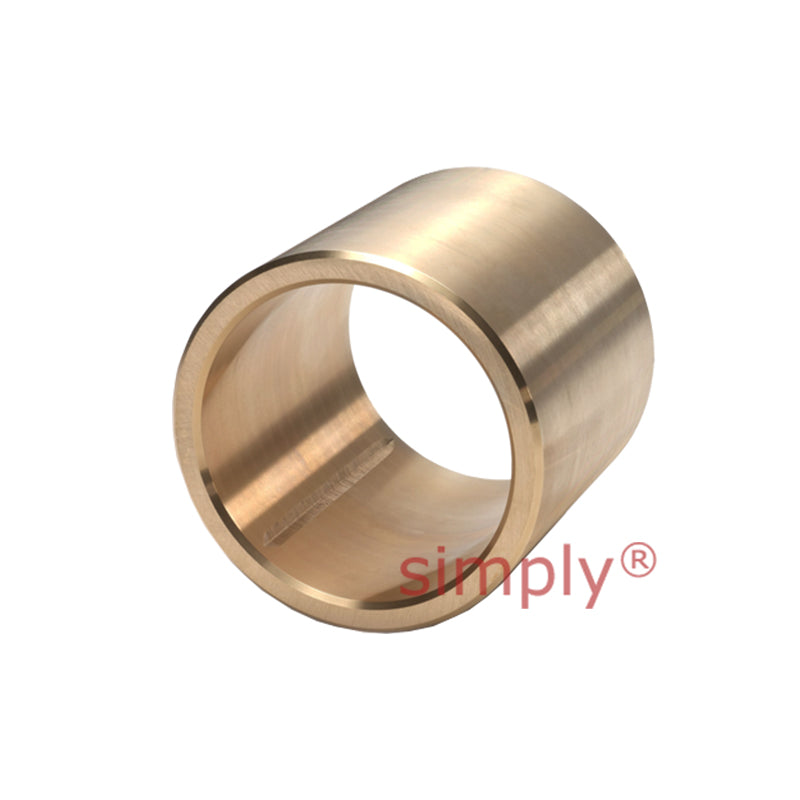

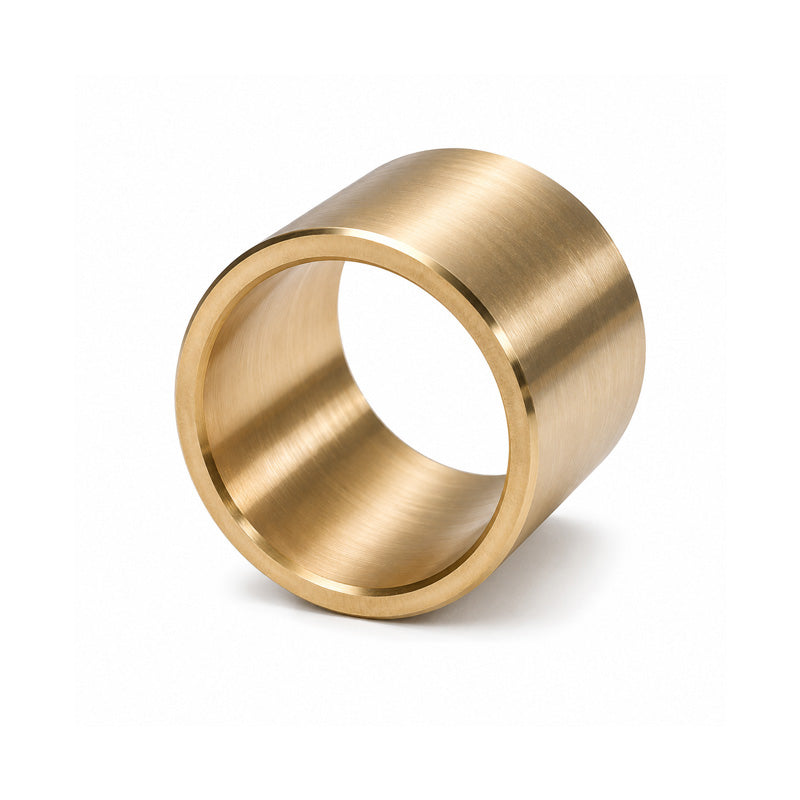

SKF PBM607560M1G1 Metric Plain Solid Bronze Bush 60x75x60mm
SKF PBM607560M1G1 Metric Plain Solid Bronze Bush 60x75x60mm
Regular price
CHF 328.00
ex VAT
Regular price
Sale price
CHF 328.00
ex VAT
In stock
Price Break
9+
CHF 260.84
19+
CHF 246.19
29+
CHF 243.26
39+
CHF 240.33
49+
CHF 237.40
69+
CHF 234.47
99+
CHF 219.81
199+
CHF 216.88
249+
CHF 213.95
499+
CHF 211.02
999+
CHF 205.16
Share this product
Description
Description
PBM/PBMF Bronze Bushing: No other cylindrical bushing is used in as many and as varied applications as solid bronze bushings. The solid bronze material is ideally suited for highly demanding applications in tough environments. SKF offers a standard assortment of both plain and flanged cylindrical bushings in accordance with ISO 4379 and DIN1850. SKF Solid Bronze bushings are intended for oscillating movements in both rotational and axial directions. SKF Solid Bronze bushings are not intended for rotating movements at medium or high speeds.
Uses of Application Construction machinery, Transport equipment, Pulp and papermaking machinery, off-shore equipment
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 75mm
- Length:
- 60mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 75mm |
| B | 60mm |
| a | 3mm |
| h | 61.5mm |
| a Angle | 124 deg |
| Tolerance shaft | e7 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 25 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 45 N/mm 2 |
| Permissable Sliding Velocity ( v ) | min. 0 m/s |
| Permissable Sliding Velocity ( v ) | max. 0.5 m/s |
| Coefficient of Friction ( y ) | min. 0.08 |
| Coefficient of Friction ( y ) | max. 0.15 |
| Weight | 0.84kg |
