SKU: PBS-DS-12B-19

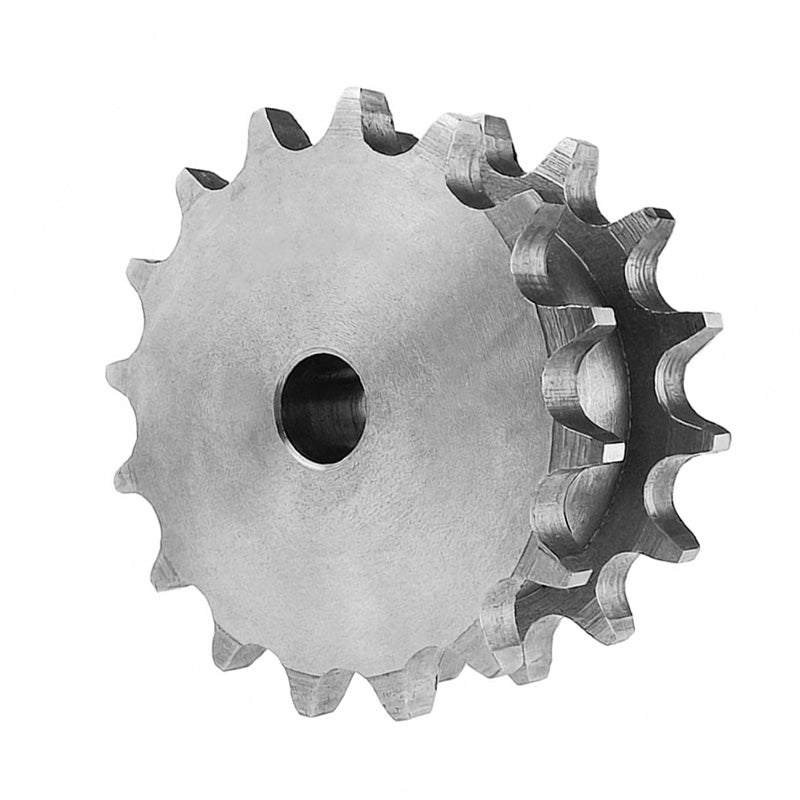

19 Tooth 12B Pilot Bore Double Simplex Sprocket for 3/4 inch Pitch Chain
19 Tooth 12B Pilot Bore Double Simplex Sprocket for 3/4 inch Pitch Chain
Regular price
CHF 43.74
ex VAT
Regular price
Sale price
CHF 43.74
ex VAT
Equivalent to: 661-038 DS12B1-19
In stock
Price Break
10+
CHF 38.93
19+
CHF 36.74
29+
CHF 36.30
39+
CHF 35.87
49+
CHF 35.43
74+
CHF 34.99
99+
CHF 32.81
199+
CHF 32.37
249+
CHF 31.93
499+
CHF 31.49
999+
CHF 30.62
Couldn't load pickup availability
Description
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-038 DS12B1-19
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-038 DS12B1-19
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 19
- Pitch:
- 19.05mm = 0.75 (3/4) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 19 |
|---|---|
| Pitch Diameter dp | 115.75mm |
| Outer Diameter de | 124.2mm |
| Width B | 45mm |
| Hub Diameter N | 95mm |
| Chamfer C | 2mm |
| Tooth Radius r3 | 19mm |
| Tooth Width b1 | 11.2mm |
| Stock Bore D1 | 24mm |
| Weight | 1.981 kg |
