SKU: PBS-DS-16B-13-DF

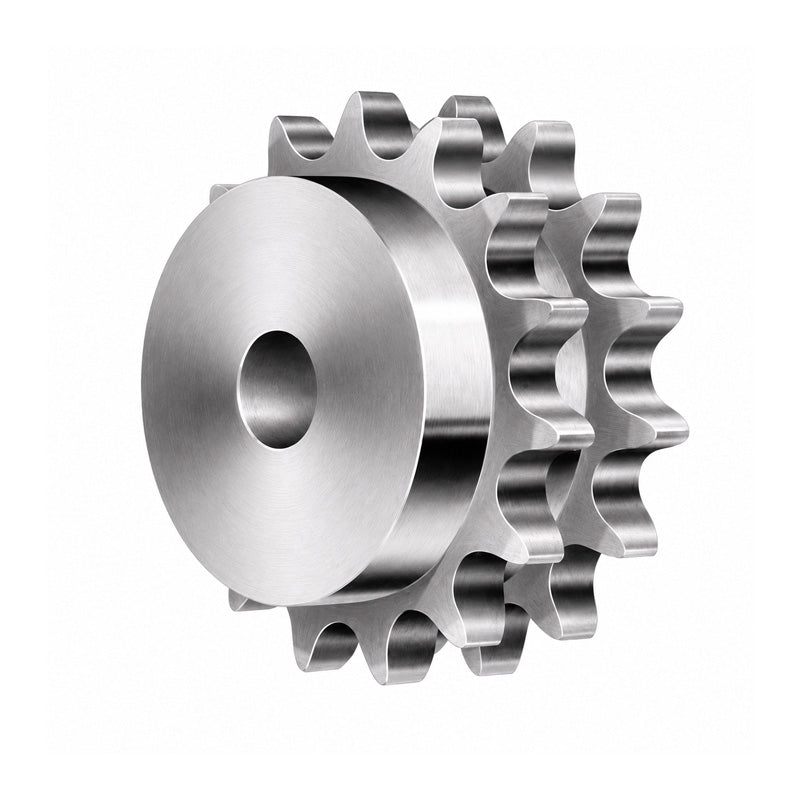

Drive-Flex 13 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain - Allow 2-3 Days
Drive-Flex 13 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain - Allow 2-3 Days
Regular price
CHF 87.05
ex VAT
Regular price
Sale price
CHF 87.05
ex VAT
Equivalent to: 661-043 DS16B1-13
In stock
Price Break
5+
CHF 86.18
10+
CHF 82.70
20+
CHF 80.96
50+
CHF 78.35
100+
CHF 76.60
500+
CHF 72.25
1000+
CHF 60.94
Couldn't load pickup availability
Description
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-043 DS16B1-13
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-043 DS16B1-13
- Brand / Quality:
- Drive-Flex - High Quality
- Number of Teeth:
- 13
- Pitch:
- 25.4mm = 1 inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 13 |
|---|---|
| Pitch Diameter dp | 106.12mm |
| Outer Diameter de | 117mm |
| Width B | 63.5mm |
| Hub Diameter N | 81mm |
| Chamfer C | 2.5mm |
| Tooth Radius r3 | 26mm |
| Tooth Width b1 | 16.2mm |
| Stock Bore D1 | 25mm |
| Weight | 2.191 kg |
