SKU: PBS-DS-16B-17-DF

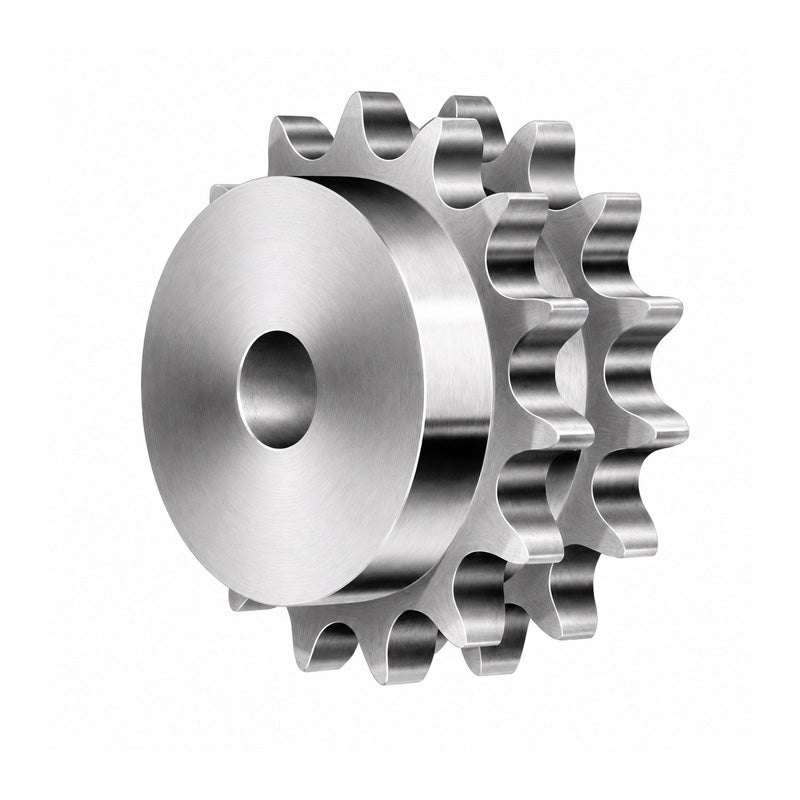

Drive-Flex 17 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain - Allow 2-3 Days
Drive-Flex 17 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain - Allow 2-3 Days
Regular price
CHF 149.22
ex VAT
Regular price
Sale price
CHF 149.22
ex VAT
Equivalent to: 661-047 DS16B1-17
In stock
Price Break
5+
CHF 147.73
10+
CHF 141.76
20+
CHF 138.77
50+
CHF 134.30
100+
CHF 131.31
500+
CHF 123.85
1000+
CHF 104.45
Couldn't load pickup availability
Description
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-047 DS16B1-17
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-047 DS16B1-17
- Brand / Quality:
- Drive-Flex - High Quality
- Number of Teeth:
- 17
- Pitch:
- 25.4mm = 1 inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 17 |
|---|---|
| Pitch Diameter dp | 138.22mm |
| Outer Diameter de | 149mm |
| Width B | 63.5mm |
| Hub Diameter N | 113mm |
| Chamfer C | 2.5mm |
| Tooth Radius r3 | 26mm |
| Tooth Width b1 | 16.2mm |
| Stock Bore D1 | 25mm |
| Weight | 4.046 kg |
