SKU: PBY12-XL-INA

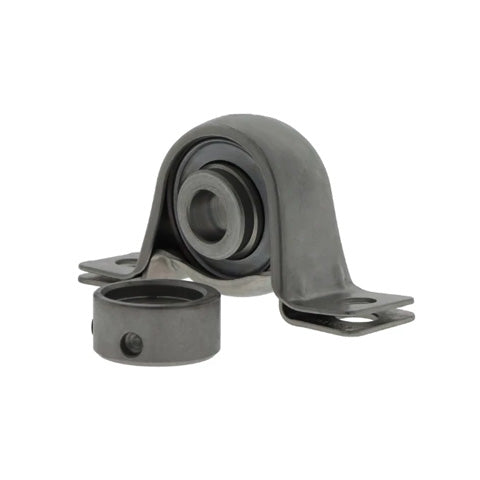

INA PBY12XL Sheet Steel Plummer Block Housing with Grub Screw Insert 12mm Bore
INA PBY12XL Sheet Steel Plummer Block Housing with Grub Screw Insert 12mm Bore
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
In stock
Price Break
4+
CHF 18.62
9+
CHF 17.57
19+
CHF 17.36
29+
CHF 17.15
39+
CHF 16.95
49+
CHF 16.74
59+
CHF 15.69
69+
CHF 15.48
79+
CHF 15.27
89+
CHF 15.06
99+
CHF 14.64
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Style:
- PBY
- Bolt Hole Centres:
- 68mm
Technical
Technical
| d | 12mm |
|---|---|
| L | 85.7mm |
| H2 | 43.2mm |
| A | 25.4mm |
| A1 | 18.4mm |
| B | 22mm |
| H | 22.2mm |
| H1 | 2.6mm |
| J | 68mm |
| N | 9.5mm |
| S1 | 16mm |
| Mass | 0.15 kg |
| Load carrying capacity of housing Cor G | 1350 N |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 4750 N |
| Designation of housing | GEH40-BT? |
| Designation of bearing | AY12-XL-NPP-B? |
