SKU: PBY20-XL-INA

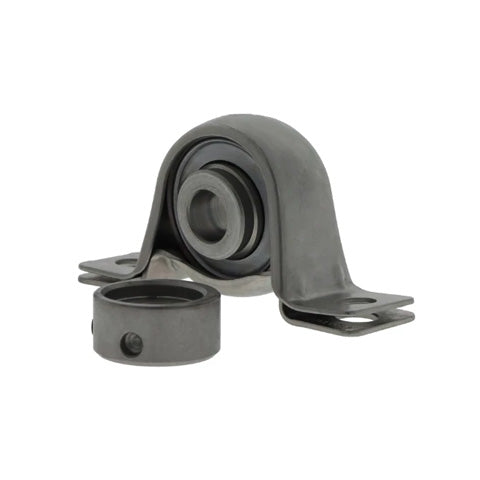

INA PBY20XL Sheet Steel Plummer Block Housing with Grub Screw Insert 20mm Bore
INA PBY20XL Sheet Steel Plummer Block Housing with Grub Screw Insert 20mm Bore
Regular price
CHF 28.00
ex VAT
Regular price
Sale price
CHF 28.00
ex VAT
In stock
Price Break
4+
CHF 21.96
9+
CHF 20.72
19+
CHF 20.48
29+
CHF 20.23
39+
CHF 19.98
49+
CHF 19.74
59+
CHF 18.50
69+
CHF 18.26
79+
CHF 18.01
89+
CHF 17.76
99+
CHF 17.27
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, grub screw fixing. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Style:
- PBY
- Bolt Hole Centres:
- 76mm
Technical
Technical
| d | 20mm |
|---|---|
| L | 98.4mm |
| H2 | 50.1mm |
| A | 31.8mm |
| A1 | 22.3mm |
| B | 25mm |
| H | 25.4mm |
| H1 | 3.3mm |
| J | 76mm |
| N | 9.5mm |
| S1 | 18mm |
| Mass | 0.22 kg |
| Load carrying capacity of housing Cor G | 1600 N |
| Basic dynamic load rating Cr | 13600 N |
| Basic static load rating Cor | 6600 N |
| Designation of housing | GEH47-BT? |
| Designation of bearing | AY20-XL-NPP-B? |
