SKU: PCCJ25-INA

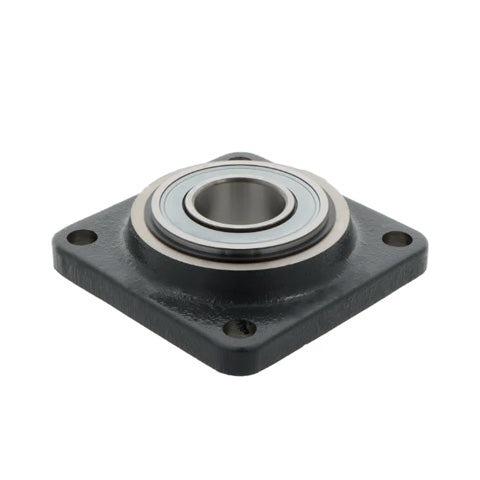

INA PCCJ25 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 25mm Bore
INA PCCJ25 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 25mm Bore
Regular price
CHF 90.00
ex VAT
Regular price
Sale price
CHF 90.00
ex VAT
In stock
Price Break
4+
CHF 71.64
9+
CHF 67.61
19+
CHF 66.81
29+
CHF 66.00
39+
CHF 65.20
49+
CHF 64.39
59+
CHF 60.37
69+
CHF 59.56
79+
CHF 58.76
89+
CHF 57.95
99+
CHF 56.34
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed double row angular contact ball bearing fitted in the housing. This square cast iron housing has through holes for location purposes. Benefits: Re-lubricatable, sealed on both sides, maintenance-free. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- PCCJ
- Bolt Hole Centres:
- 70mm

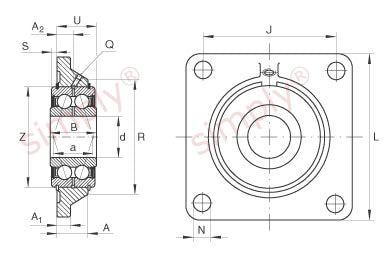

Technical
Technical
| d | 25mm |
|---|---|
| L | 95mm |
| B | 30mm |
| A | 22.1mm |
| A1 | 12mm |
| A2 | 11.7mm |
| a | 24mm |
| J | 70mm |
| N | 11.5mm |
| Q | M6 |
| R max | 64mm |
| S | 2.4mm |
| U | 26.7mm |
| Z | 52mm (Tolerance: h8) |
| Mass | 0.79 kg |
| Basic dynamic load rating Cr | 21600 N |
| Basic static load rating Cor | 14900 N |
| Fatigue limit load Cur | 750 N |
| Designation of housing | CCJ05 |
| Designation of bearing | G5205-2RS-N |
