SKU: PCCJ30-INA

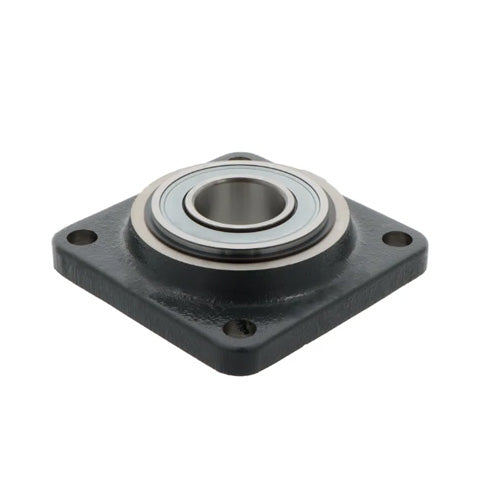

INA PCCJ30 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 30mm Bore
INA PCCJ30 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 30mm Bore
Regular price
CHF 105.60
ex VAT
Regular price
Sale price
CHF 105.60
ex VAT
In stock
Price Break
10+
CHF 93.98
19+
CHF 88.70
29+
CHF 87.65
39+
CHF 86.59
49+
CHF 85.54
74+
CHF 84.48
99+
CHF 79.20
199+
CHF 78.14
249+
CHF 77.09
499+
CHF 76.03
999+
CHF 73.92
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed double row angular contact ball bearing fitted in the housing. This square cast iron housing has through holes for location purposes. Benefits: Re-lubricatable, sealed on both sides, maintenance-free. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Style:
- PCCJ
- Bolt Hole Centres:
- 82.5mm
Technical
Technical
| d | 30mm |
|---|---|
| L | 108mm |
| B | 34mm |
| A | 24mm |
| A1 | 12mm |
| A2 | 13mm |
| a | 28.9mm |
| J | 82.5mm |
| N | 11.5mm |
| Q | M6 |
| R max | 76mm |
| S | 3.2mm |
| U | 29.7mm |
| Z | 62mm (Tolerance: h8) |
| Mass | 1.12 kg |
| Basic dynamic load rating Cr | 30000 N |
| Basic static load rating Cor | 21400 N |
| Fatigue limit load Cur | 1080 N |
| Designation of housing | CCJ06 |
| Designation of bearing | G5206-2RS-N |
