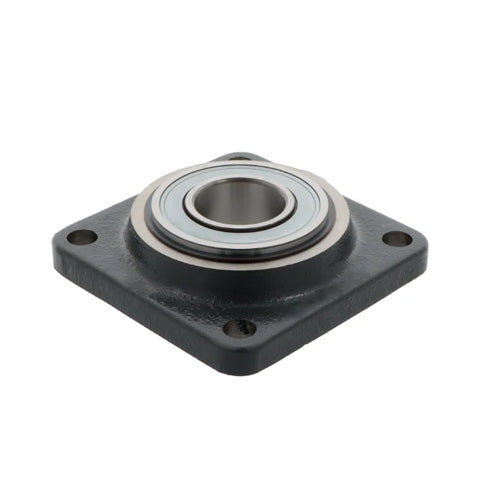

INA PCCJ35 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 35mm Bore
INA PCCJ35 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 35mm Bore
Regular price
CHF 147.70
ex VAT
Regular price
Sale price
CHF 147.70
ex VAT
In stock
Price Break
10+
CHF 131.45
19+
CHF 124.07
29+
CHF 122.59
39+
CHF 121.11
49+
CHF 119.64
74+
CHF 118.16
99+
CHF 110.78
199+
CHF 109.30
249+
CHF 107.82
499+
CHF 106.34
999+
CHF 103.39
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed double row angular contact ball bearing fitted in the housing. This square cast iron housing has through holes for location purposes. Benefits: Re-lubricatable, sealed on both sides, maintenance-free. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- PCCJ
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 35mm |
|---|---|
| L | 118mm |
| B | 36mm |
| A | 26mm |
| A1 | 14mm |
| A2 | 14mm |
| a | 33.8mm |
| J | 92mm |
| N | 14mm |
| Q | M6 |
| R max | 88mm |
| S | 3mm |
| U | 31.7mm |
| Z | 72mm (Tolerance: h8) |
| Mass | 1.48 kg |
| Basic dynamic load rating Cr | 39500 N |
| Basic static load rating Cor | 29000 N |
| Fatigue limit load Cur | 1470 N |
| Designation of housing | CCJ07 |
| Designation of bearing | G5207-2RS-N |
