SKU: PCCJ40-INA

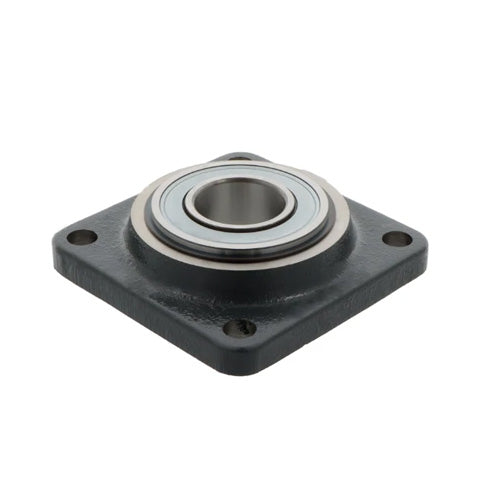

INA PCCJ40 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 40mm Bore
INA PCCJ40 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 40mm Bore
Regular price
CHF 148.89
ex VAT
Regular price
Sale price
CHF 148.89
ex VAT
In stock
Price Break
10+
CHF 132.51
19+
CHF 125.07
29+
CHF 123.58
39+
CHF 122.09
49+
CHF 120.60
74+
CHF 119.11
99+
CHF 111.67
199+
CHF 110.18
249+
CHF 108.69
499+
CHF 107.20
999+
CHF 104.22
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed double row angular contact ball bearing fitted in the housing. This square cast iron housing has through holes for location purposes. Benefits: Re-lubricatable, sealed on both sides, maintenance-free. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Style:
- PCCJ
- Bolt Hole Centres:
- 101.5mm
Technical
Technical
| d | 40mm |
|---|---|
| L | 130mm |
| B | 38mm |
| A | 28mm |
| A1 | 14mm |
| A2 | 15mm |
| a | 38.8mm |
| J | 101.5mm |
| N | 14mm |
| Q | M6 |
| R max | 98mm |
| S | 3.2mm |
| U | 33.7mm |
| Z | 80mm (Tolerance: h8) |
| Mass | 1.8 kg |
| Basic dynamic load rating Cr | 50000 N |
| Basic static load rating Cor | 38000 N |
| Fatigue limit load Cur | 1910 N |
| Designation of housing | CCJ08 |
| Designation of bearing | G5208-2RS-N |
