SKU: PCF25-XL-INA

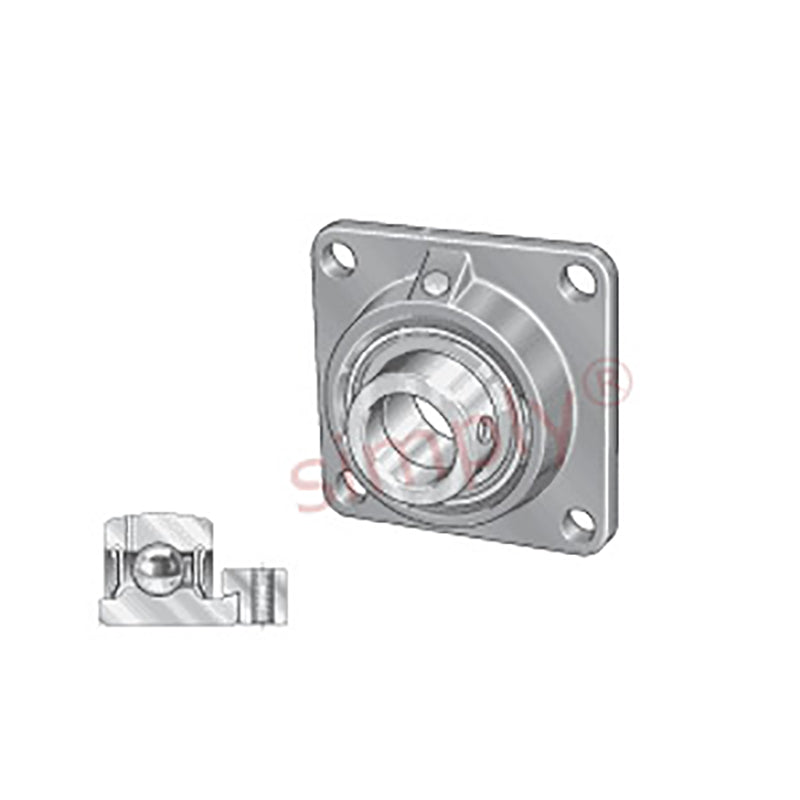

INA PCF25XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 25mm Bore
INA PCF25XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 25mm Bore
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
4+
CHF 31.73
9+
CHF 29.95
19+
CHF 29.59
29+
CHF 29.23
39+
CHF 28.88
49+
CHF 28.52
59+
CHF 26.74
69+
CHF 26.38
79+
CHF 26.02
89+
CHF 25.67
99+
CHF 24.96
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- PCF
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 25mm |
|---|---|
| L | 95mm |
| U | 36mm |
| A | 22mm |
| A1 | 11mm |
| A2 | 12.5mm |
| B1 | 31mm |
| d3 max | 37.5mm |
| J | 70mm |
| N | 11.5mm |
| Q | M6 |
| V | 74mm |
| Mass | 0.71 kg |
| Basic dynamic load rating Cr | 14900 N |
| Basic static load rating Cor | 7800 N |
| Designation of housing | CF05 |
| Designation of bearing | GRAE25-XL-NPP-B |
