SKU: PCJT55-XL-INA

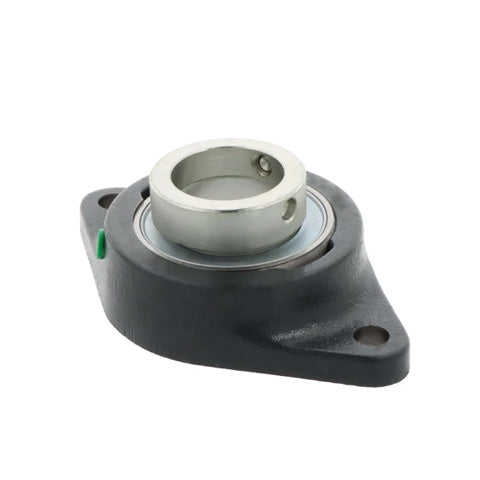

INA PCJT55XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 55mm Bore
INA PCJT55XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 55mm Bore
Regular price
CHF 110.74
ex VAT
Regular price
Sale price
CHF 110.74
ex VAT
In stock
Price Break
10+
CHF 98.56
19+
CHF 93.02
29+
CHF 91.91
39+
CHF 90.81
49+
CHF 89.70
74+
CHF 88.59
99+
CHF 83.06
199+
CHF 81.95
249+
CHF 80.84
499+
CHF 79.73
999+
CHF 77.52
Couldn't load pickup availability
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 55mm
- Style:
- PCJT
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 55mm |
|---|---|
| H | 222mm |
| U | 67.4mm |
| A | 43.5mm |
| A1 | 15mm |
| A2 | 31mm |
| B1 | 48.4mm |
| d3 max | 76mm |
| J | 184mm |
| L | 134mm |
| N | 18mm |
| Q | M6mm |
| V | 134mm |
| Mass | 2.31 kg |
| Basic dynamic load rating Cr | 46000 N |
| Basic static load rating Cor | 29000 N |
| Designation of housing | CJT11 |
| Designation of bearing | GRAE55-XL-NPP-B |
