SKU: PCJY25-XL-N-INA

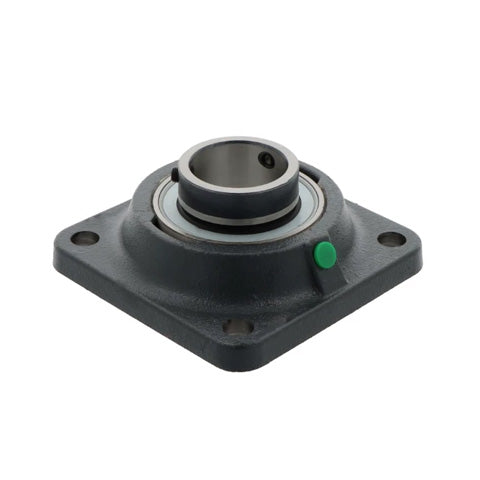

INA PCJY25XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 25mm Bore
INA PCJY25XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 25mm Bore
Regular price
CHF 37.00
ex VAT
Regular price
Sale price
CHF 37.00
ex VAT
In stock
Price Break
4+
CHF 29.08
9+
CHF 27.44
19+
CHF 27.12
29+
CHF 26.79
39+
CHF 26.46
49+
CHF 26.14
59+
CHF 24.50
69+
CHF 24.18
79+
CHF 23.85
89+
CHF 23.52
99+
CHF 22.87
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- PCJY
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 25mm |
|---|---|
| L | 95mm |
| U | 38.5mm |
| A | 29mm |
| A1 | 11mm |
| A2 | 19mm |
| B | 27mm |
| J | 70mm |
| N | 11.5mm |
| Q | M6 |
| V | 74mm |
| Mass | 0.72 kg |
| Basic dynamic load rating Cr | 14900 N |
| Basic static load rating Cor | 7800 N |
| Designation of housing | CJ05 |
| Designation of bearing | GAY25-XL-NPP-BBearing end cap, closed design (to be ordered separately) |
| KASK05 | N/A |
