SKU: PCZH56-JCS

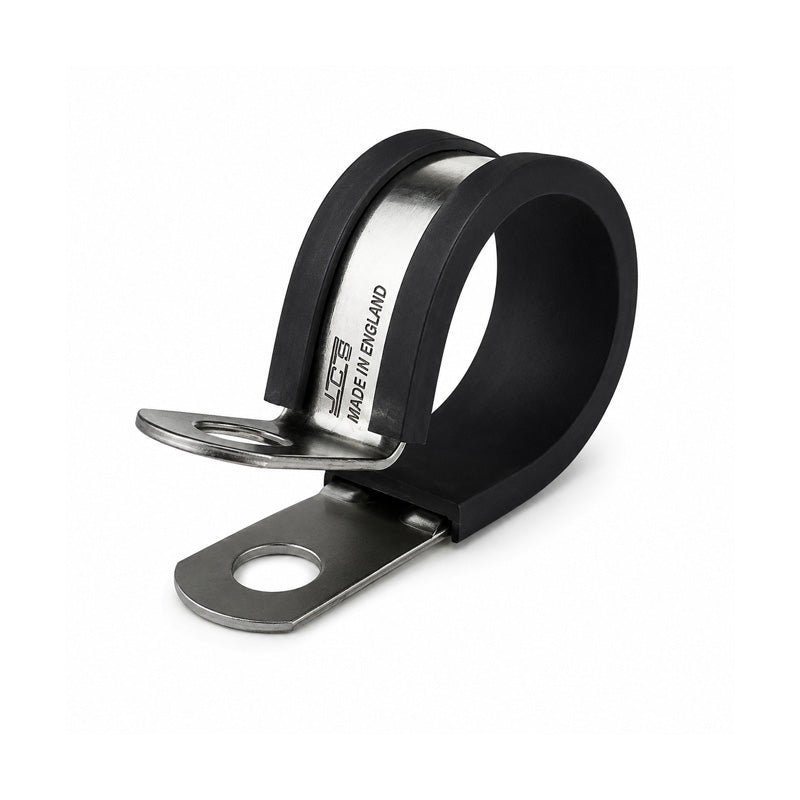

JCS PCZH56 Hi-Temp Zinc Plated Steel P-Clip with TPE Liner Band 56mm Closed Diameter
JCS PCZH56 Hi-Temp Zinc Plated Steel P-Clip with TPE Liner Band 56mm Closed Diameter
Regular price
CHF 2.41
ex VAT
Regular price
Sale price
CHF 2.41
ex VAT
In stock
Price Break
5+
CHF 1.69
10+
CHF 1.45
20+
CHF 1.33
50+
CHF 1.21
100+
CHF 0.96
500+
CHF 0.84
1000+
CHF 0.72
Couldn't load pickup availability
Description
Description
High-Temperature Zinc Plated Steel P-Clips with TPE160 Liner: JCS rubber-lined P-Clips are tough and durable, providing a simple and secure fixing solution for even the most challenging of environments. Supplied with a TPE rubber liner which prevents chafing or damage to the surface of the item being clamped. The P-Clip band features a special strengthening rib that keeps the clips flush with the surface to which it is bolted. Zinc Plated version is heavily electro-zinc plated on all surfaces including the edges for the very best corrosion resistance. UV and ozone resistant TPE rubber liner absorbs vibration and prevents chafing of pipe or cable.
- Brand / Quality:
- JCS - High Quality
- Outside Diameter:
- 56mm
- Width:
- 16mm
Technical
Technical
| BS.No | 56 |
|---|---|
| Fastening | M6 |
| Dia Closed | 56mm |
| A | 32mm |
| B | 42mm |
| C | 1.2mm |
| D | 6.6mm |
| E | 12.6mm |
| F | 16mm |
| G | 7mm |
| Liner | TPE 160 (grey) |
| Service Temperature | -50 deg C to +160 deg C |
