SKU: PE25-INA

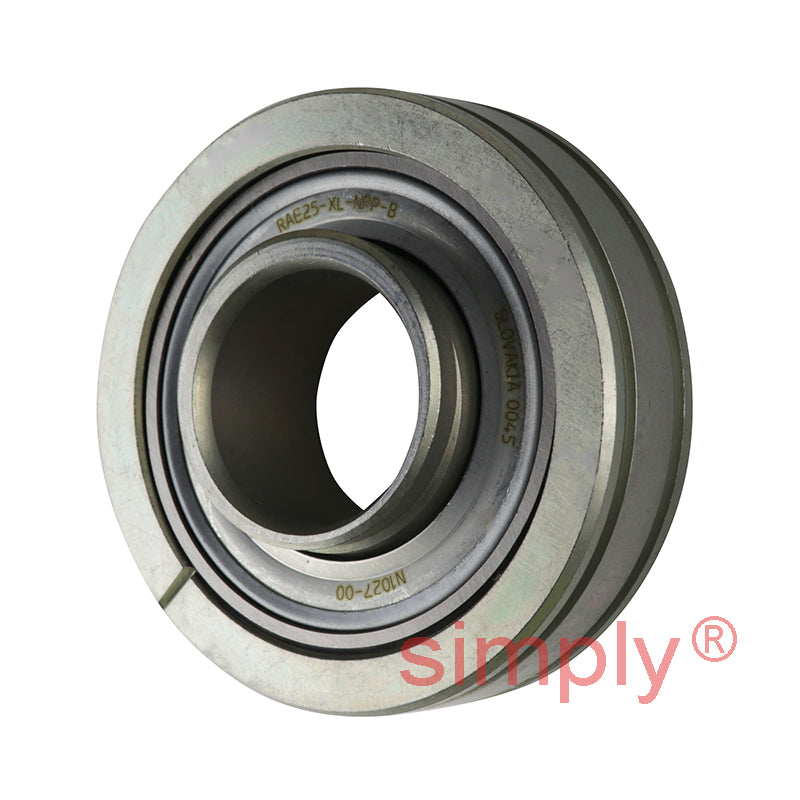

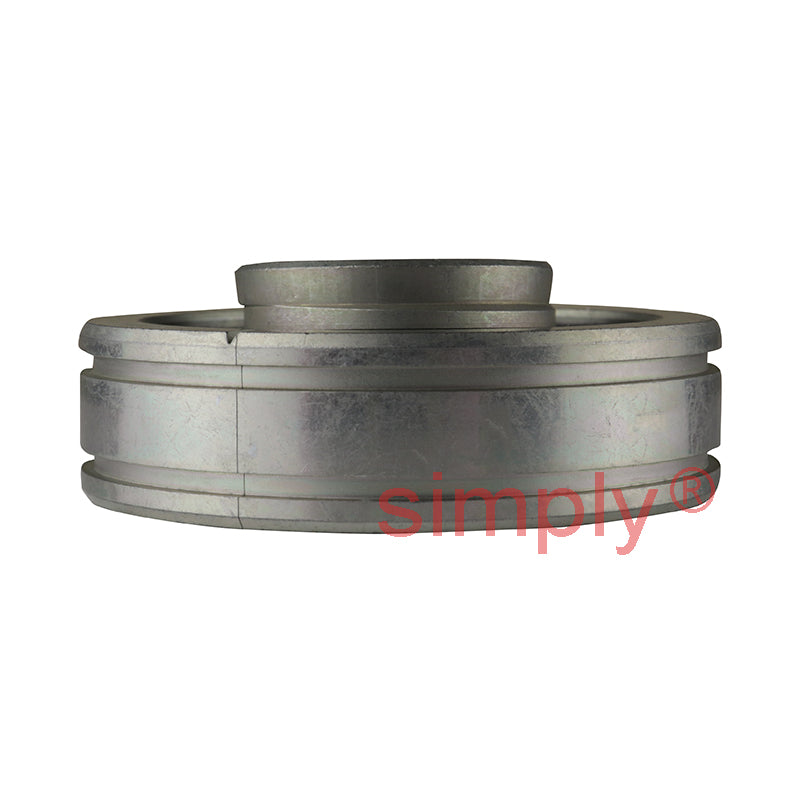

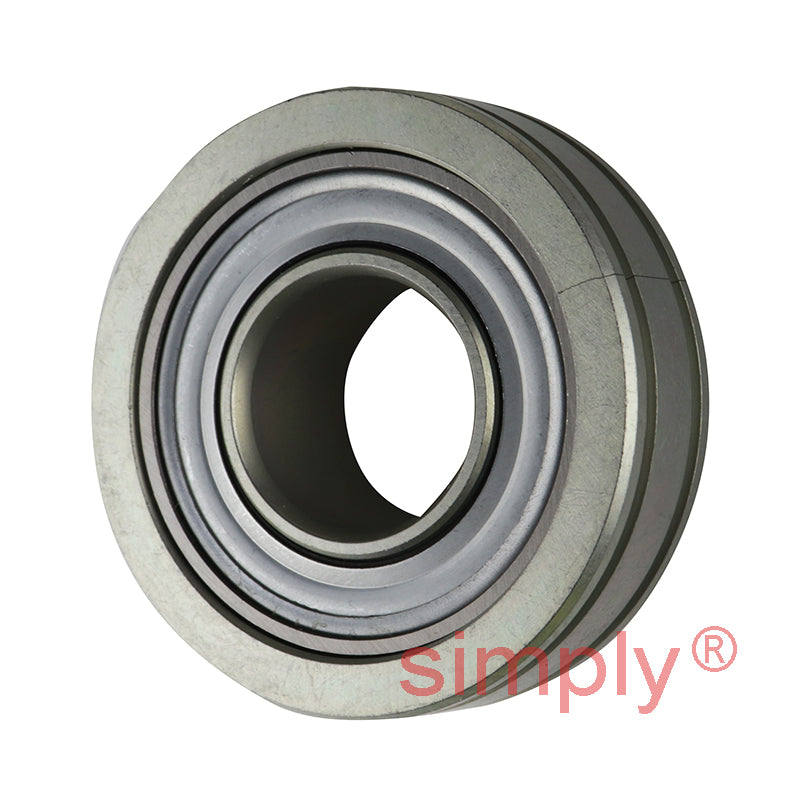

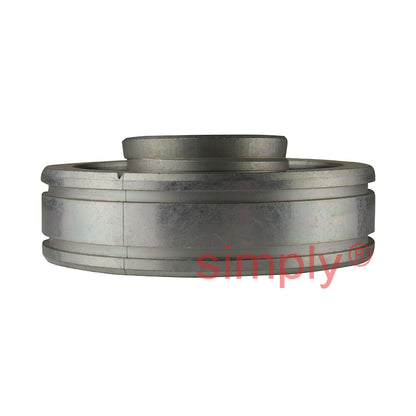

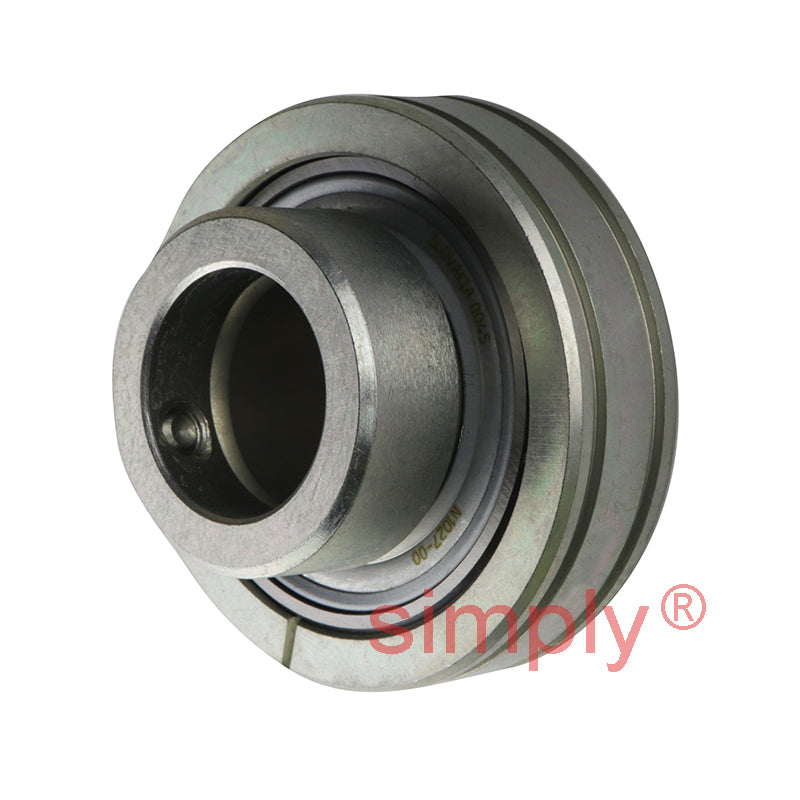

INA PE25XL Metric Parallel Outer Bearing Insert with Steel Aligning Ring and P Seals and Eccentric Collar 25x62x32mm
INA PE25XL Metric Parallel Outer Bearing Insert with Steel Aligning Ring and P Seals and Eccentric Collar 25x62x32mm
Regular price
CHF 45.80
ex VAT
Regular price
Sale price
CHF 45.80
ex VAT
In stock
Price Break
10+
CHF 40.76
19+
CHF 38.47
29+
CHF 38.01
39+
CHF 37.56
49+
CHF 37.10
74+
CHF 36.64
99+
CHF 34.35
199+
CHF 33.89
249+
CHF 33.43
499+
CHF 32.98
999+
CHF 32.06
Couldn't load pickup availability
Description
Description
|

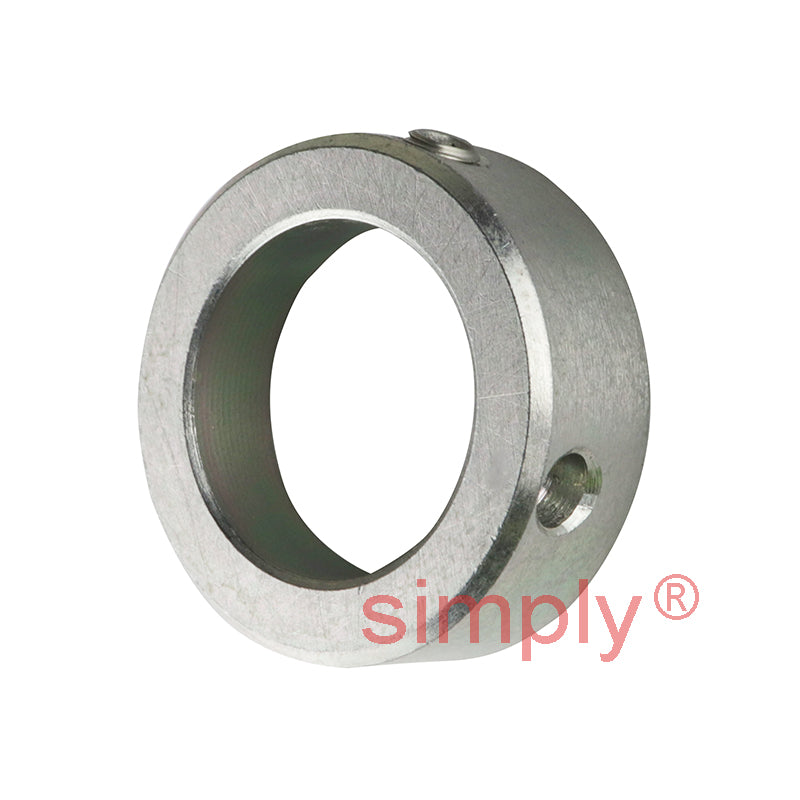

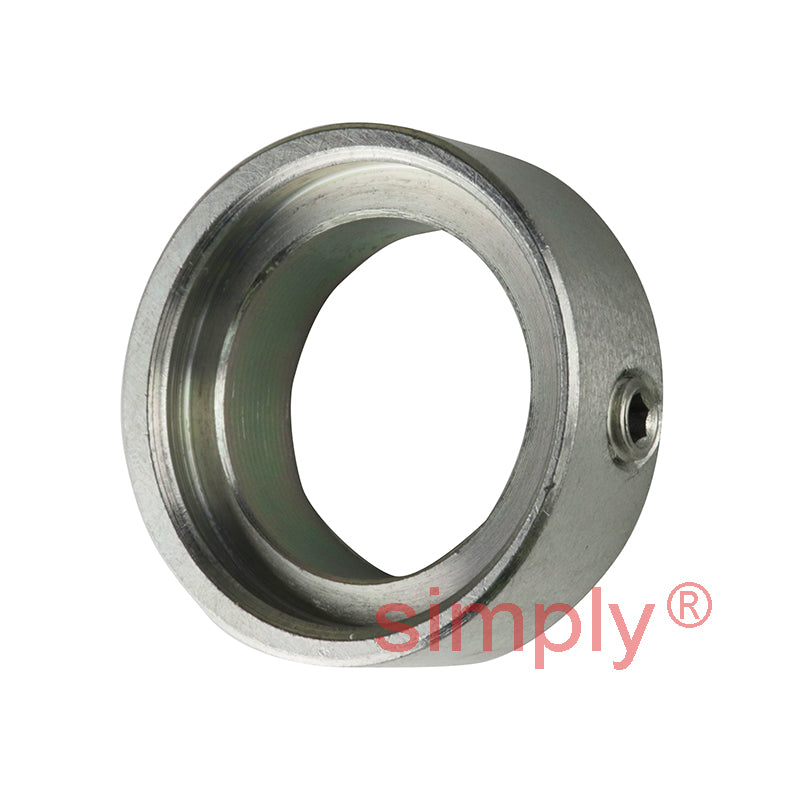

INA PE Series Inserts: Bearing insert with parallel bore with steel aligning ring, P seals and eccentric collar. These radial insert ball bearings have an axially split outer ring as an aligning ring. They are mounted in cylindrical bores and compensate for static misalignment of the shaft up to ±5 degrees. Due to the annular slots in the outer ring to DIN 616, they are highly suitable for sheet metal constructions. In this case, they are axially located using snap rings to DIN 5 417. The aligning ring has a Corrotect® coating and is thus protected against fretting corrosion. The inner ring and locking collar are also Corrotect®-coated. These bearings cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 32mm
- Type:
- Parallel Outer
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| U | 32mm |
| A | 17mm |
| B1 | 31mm |
| b | 1.9mm Tolerance: +0.3 |
| C1 | 11.2mm Tolerance: +0.2 |
| D1 | 59.6mm Tolerance: -0.5 |
| d3 max | 37.5mm |
| S1 | 23.5mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Designation of bearing | RAE25-NPP-B |
| Weight | 0.31 kg |
