SKU: PF15-00-502-DURB

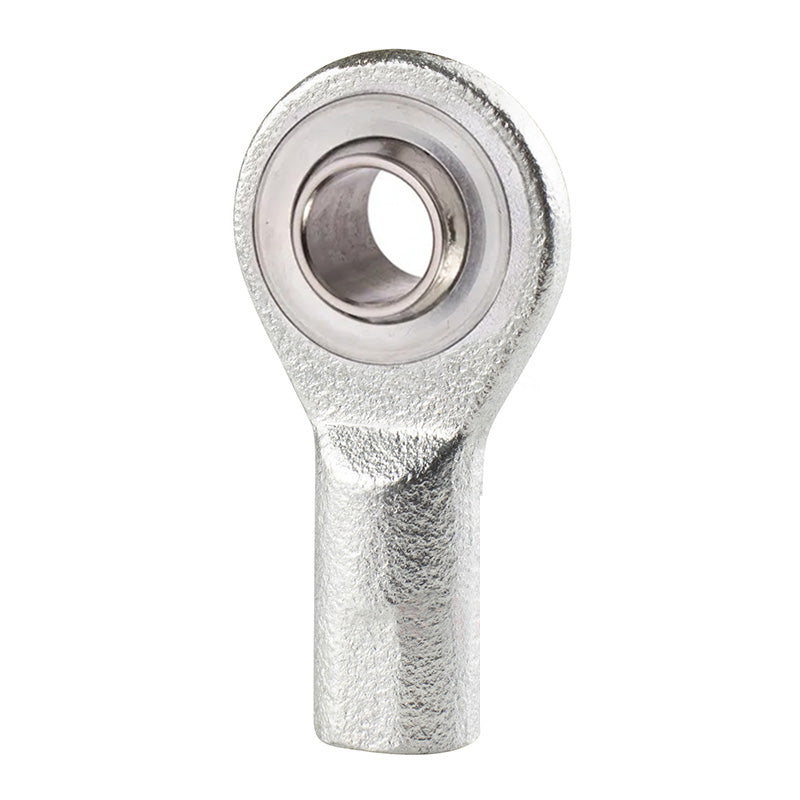

Durbal PF15-00-502 Left Hand Metric Steel Female Rod End M12 Thread
Durbal PF15-00-502 Left Hand Metric Steel Female Rod End M12 Thread
Regular price
CHF 149.18
ex VAT
Regular price
Sale price
CHF 149.18
ex VAT
In stock
Price Break
5+
CHF 147.69
10+
CHF 141.72
20+
CHF 138.74
50+
CHF 134.26
100+
CHF 131.28
500+
CHF 123.82
1000+
CHF 104.43
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M12
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 15mm
Technical
Technical

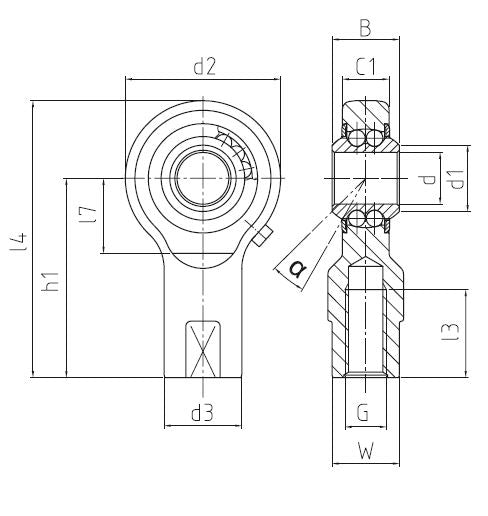

| Thread Direction | -502 (Left) |
|---|---|
| d | 15mm |
| G (Thread) | M12 |
| B | 16.5mm |
| C1 | 12mm |
| h1 | 51mm |
| d1 | 17.5mm |
| d2 | 40mm |
| d3 | 19mm |
| l3 | 24mm |
| l4 | 71mm |
| l7 | 20mm |
| W | 17mm |
| tilt angle α | 7 deg |
| weight | 0.14kg |
| rotational speed limit n max | 1.025 (min-1) |
| axial factor | 2.3 Y |
| axial factor | 2.41 Y0 |
| basic load rating dyn C | 5 kN |
| basic load rating stat Co | 1.9 kN |
| radial clearance CN | 10-30 µm |
