SKU: PF20TF-SKF

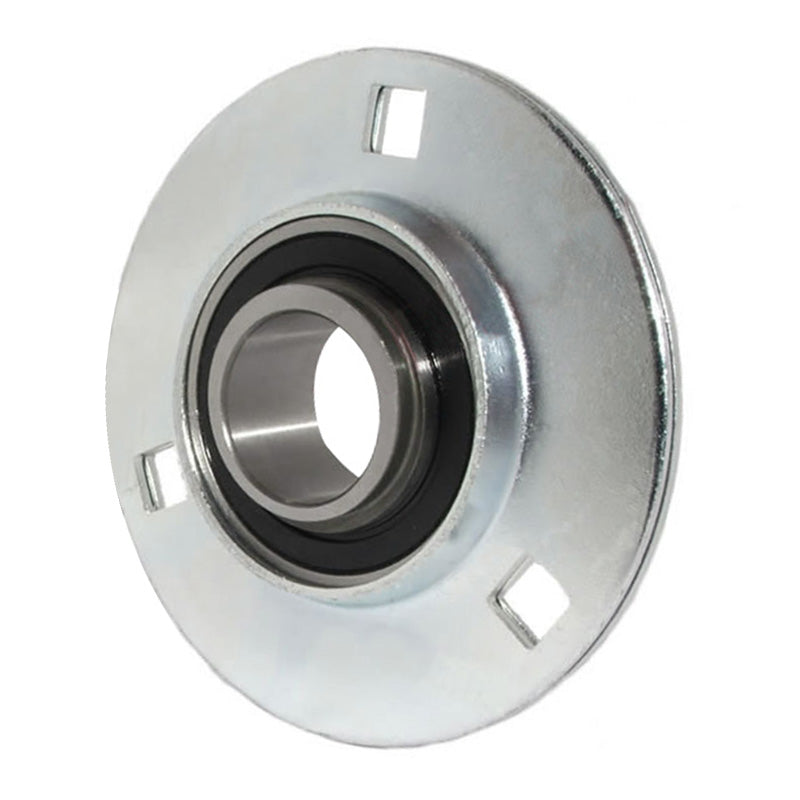

SKF PF20TF Pressed Steel Round Housing with Grub Screw 20mm Insert - Allow 2-3 Days
SKF PF20TF Pressed Steel Round Housing with Grub Screw 20mm Insert - Allow 2-3 Days
Regular price
CHF 495.00
ex VAT
Regular price
Sale price
CHF 495.00
ex VAT
In stock
Price Break
10+
CHF 438.62
20+
CHF 420.90
30+
CHF 412.04
40+
CHF 398.75
50+
CHF 389.88
75+
CHF 367.73
100+
CHF 310.14
200+
CHF 0.00
250+
CHF 0.00
500+
CHF 0.00
1000+
CHF 0.00
Description
Description
| SKF Round Flanged Y-bearing Units with Pressed Steel Housing and Grub Screws: These units are designed for simple applications with limited loads and speeds. These round flanged housings are made of pressed steel and have three or four square holes (depending on the size of the housing) for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- PF
- Pitch Circle Diameter:
- 71.5mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 2mm |
| A2 | 8mm |
| B | 31mm |
| Da | 55mm |
| H | 91mm |
| J | 71.5mm |
| N | 8.7mm |
| G | 8mm |
| T | 20.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Permissible housing load | 3.3 kN |
| Weight | 0.32 kg |
