SKU: PFT206.TRI.PAIR

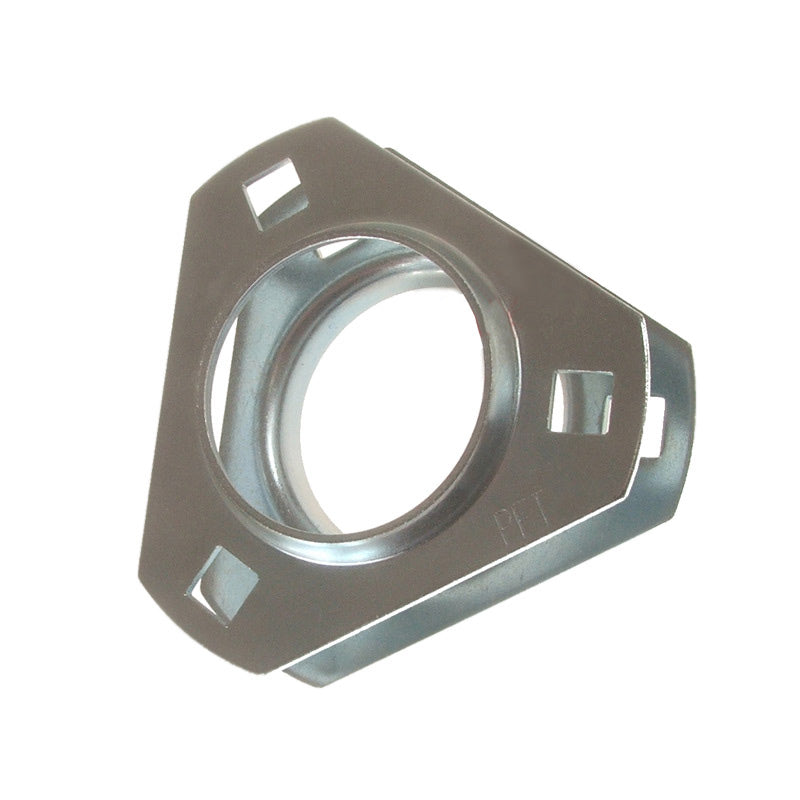

PFT206 1 Set of Pressed Steel 3 Bolt Triangle Flange Housing for 206 Inserts
PFT206 1 Set of Pressed Steel 3 Bolt Triangle Flange Housing for 206 Inserts
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
3+
CHF 7.28
4+
CHF 6.87
9+
CHF 6.79
19+
CHF 6.71
49+
CHF 6.63
99+
CHF 6.54
499+
CHF 6.14
999+
CHF 6.05
1999+
CHF 5.97
2999+
CHF 5.89
4999+
CHF 5.73
Description
Description
|
3 Bolt Triangular Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. An insert is NOT supplied with this assembly. Click here to choose a complete assembly Benefits: Cost effective housing assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Style:
- PFT
- Pitch Circle Diameter:
- 90.5mm
Technical
Technical
| a | 113mm |
|---|---|
| e | 90.5mm |
| w | 40mm |
| m | 18mm |
| s | 11mm |
| t | 5.2mm |
| f | 71mm |
| n | 9mm |
| Weight | 0.58 kg |
